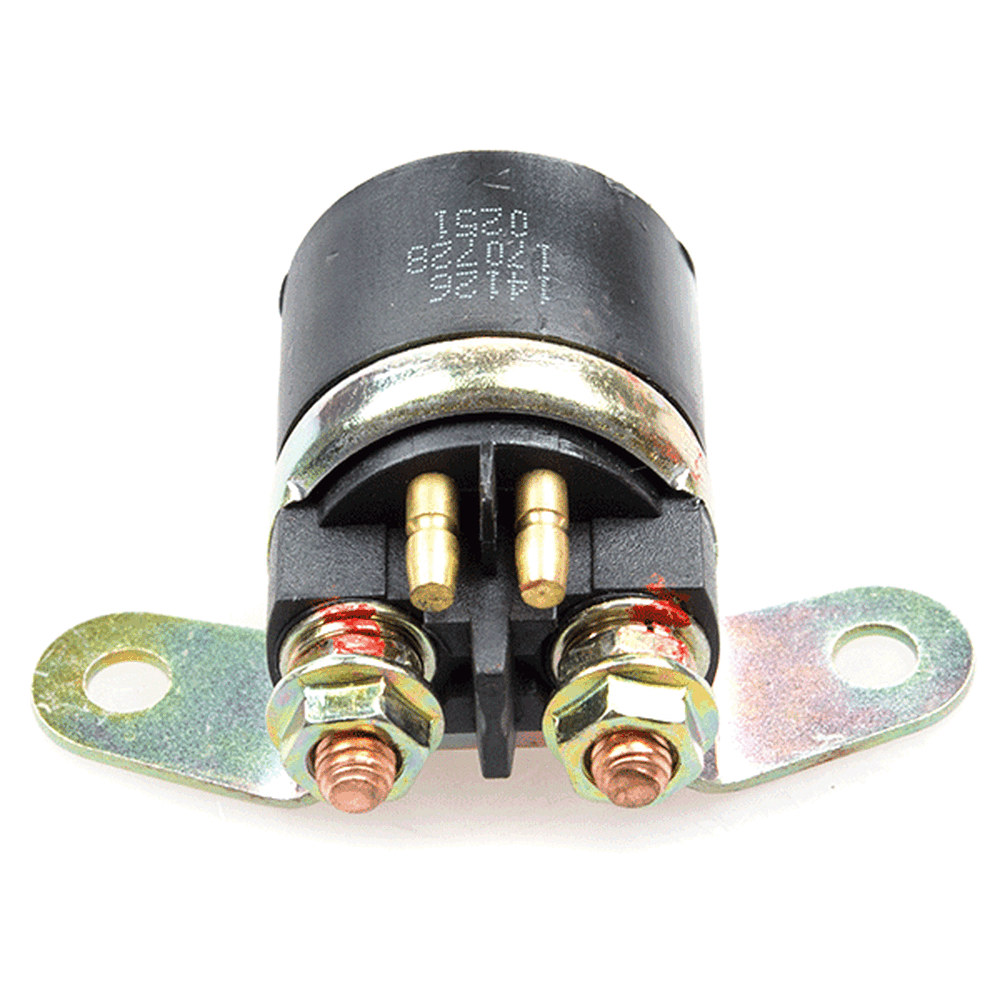

STRY047
The starter relay in a motorcycle is an electrical component that acts as a switch to engage the starter motor. When the rider presses the starter button, the relay receives a signal and activates, allowing high-current electricity to flow from the battery to the starter motor. This action cranks the engine and initiates the starting process. The starter relay helps protect the starter button and other electrical components by handling the high current required to start the engine and ensures reliable engine ignition.
Manufacturer | Model | Diagram |
---|---|---|
Kiden | Aquarius 125 [KD125-G] | |
Aries 125 [KD125-J] | ||
Pisces 125 [KD125-K] | ||
Lexmoto | Assault 125 EFI [HJ125-J-E4] | View parts diagram |
Assault 125 Euro 5 [HJ125-J-E5] | View parts diagram | |
Isca 125 Euro 5 [SK125-L-E5] | View parts diagram | |
Isca 125 [SK125-L] | View parts diagram | |
Zontes | Firefly 125 [FIREFLY] | |
Javelin 125I [JAVELIN125] | ||
Mantis 125 [MANTIS125] | ||
Rocketman 125I [ROCKETMAN125] | ||
Scorpion 125I [SCORPION125] | ||
