STTR029

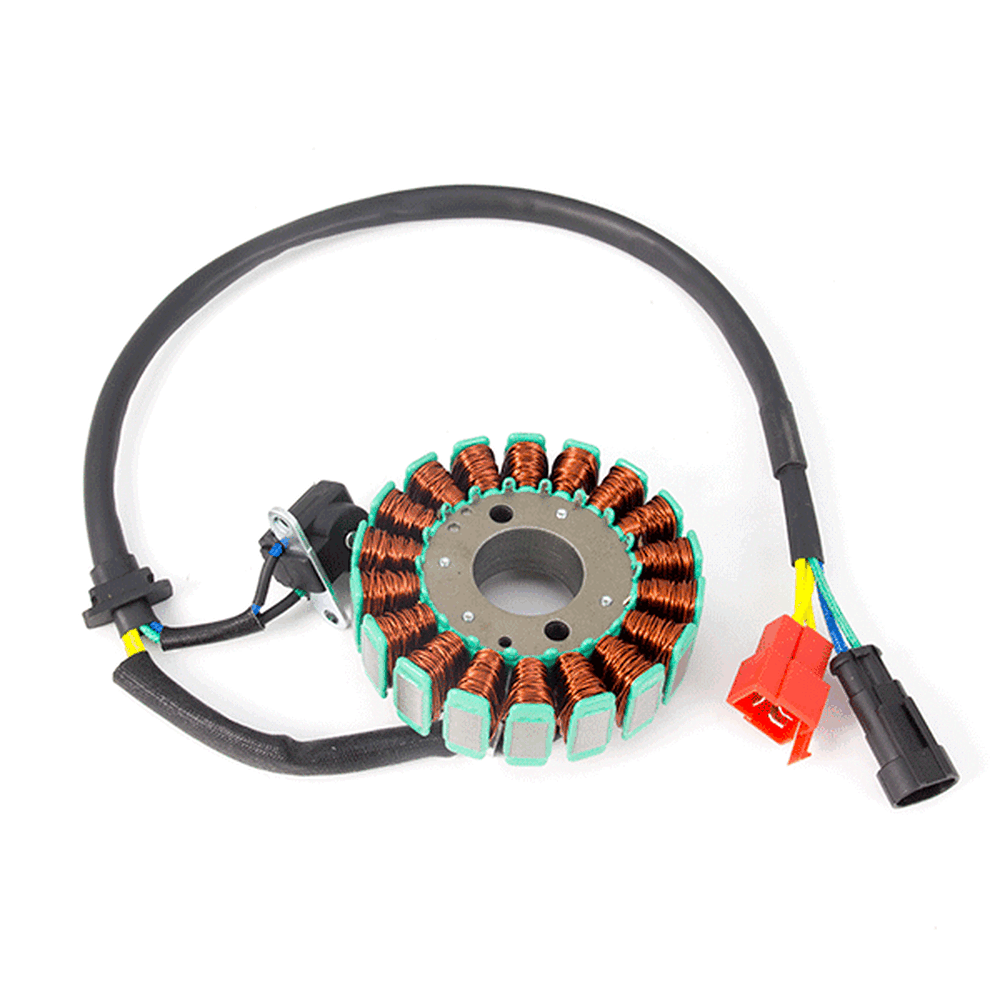

The stator is the stationary part of a rotary system, found in electric generators, electric motors, sirens, mud motors, or biological rotors. Energy flows through a stator to or from the rotating component of the system. In an electric motor, the stator provides a magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current.

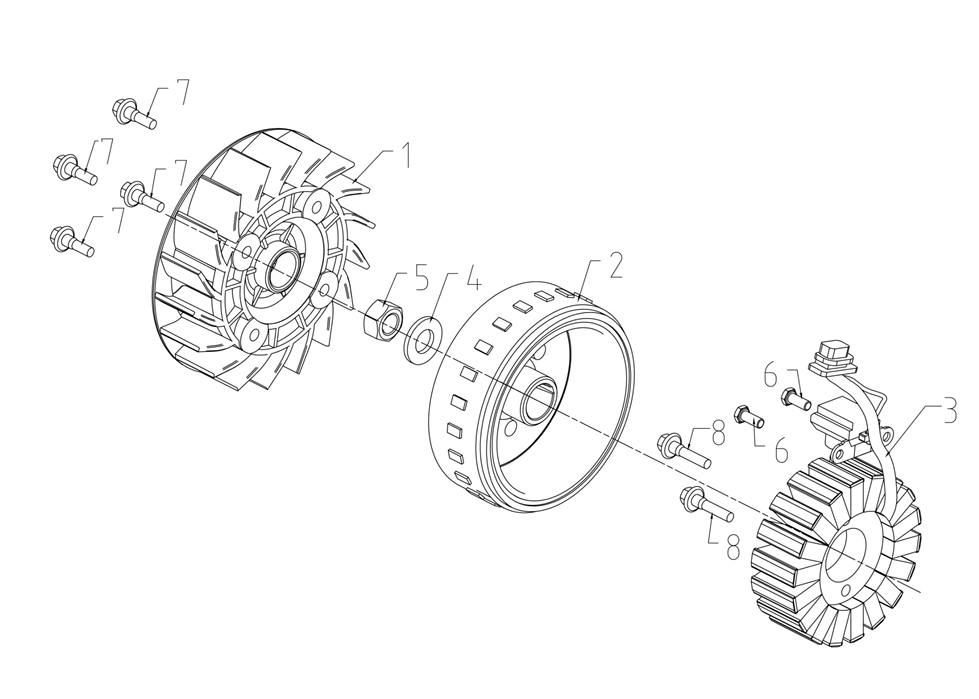

Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Aura 125 [LJ125T-18] | View parts diagram |
Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram | |
Riviera 125 [LJ125T-V] | View parts diagram | |
Urban 125 [LJ125T-16] | View parts diagram | |
Romet | City 125 [CITY125] | |
