STTR052

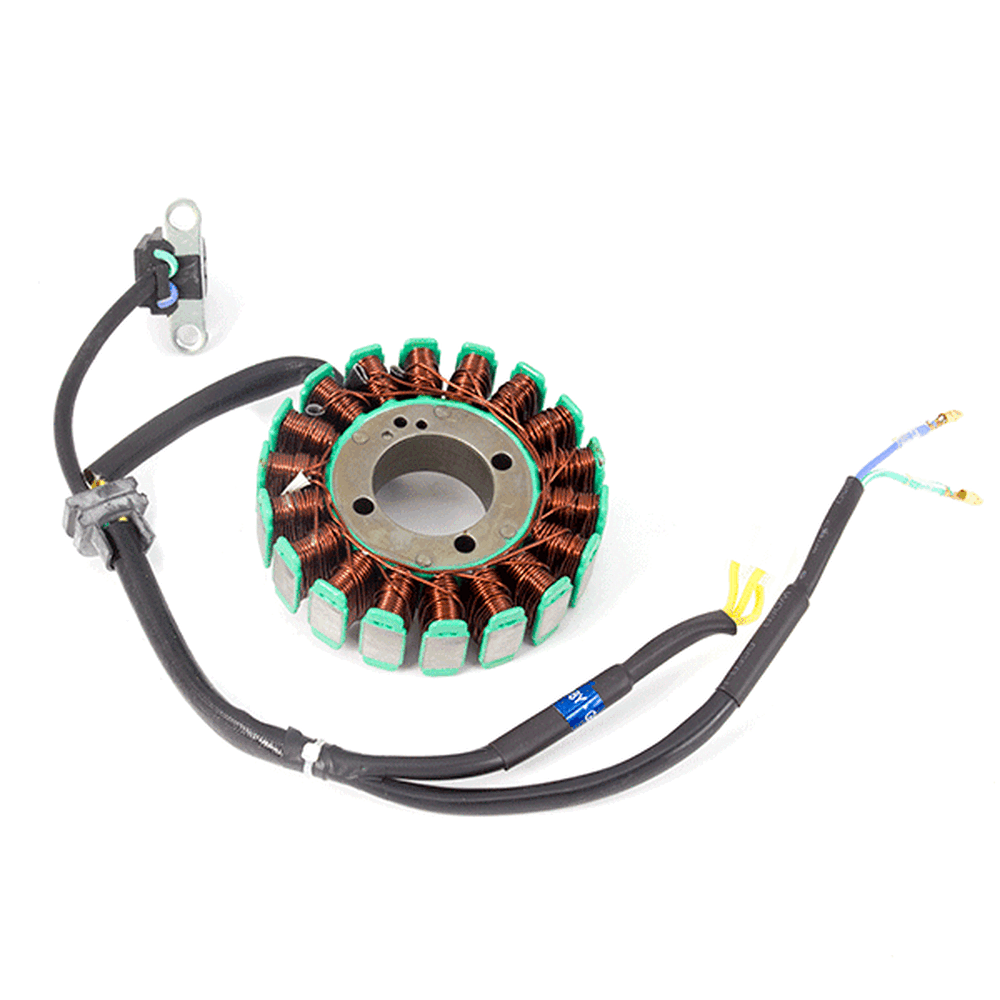

The stator is the stationary part of a rotary system, found in electric generators, electric motors, sirens, mud motors, or biological rotors. Energy flows through a stator to or from the rotating component of the system. In an electric motor, the stator provides a magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current.

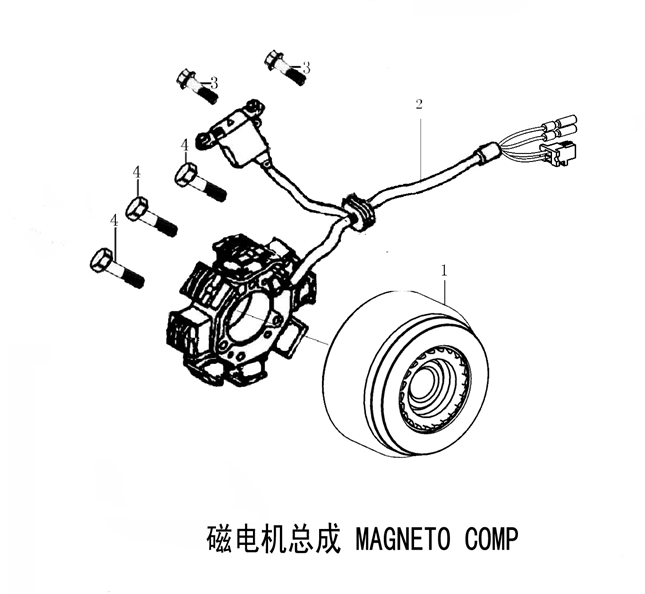

Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | ZSX-F 125 [ZS125-48E] | View parts diagram |
ZSX-R 125 [ZS125-48F] | View parts diagram | |
Sinnis | RSX 125 [ZS125-80] | |
