SWHD001

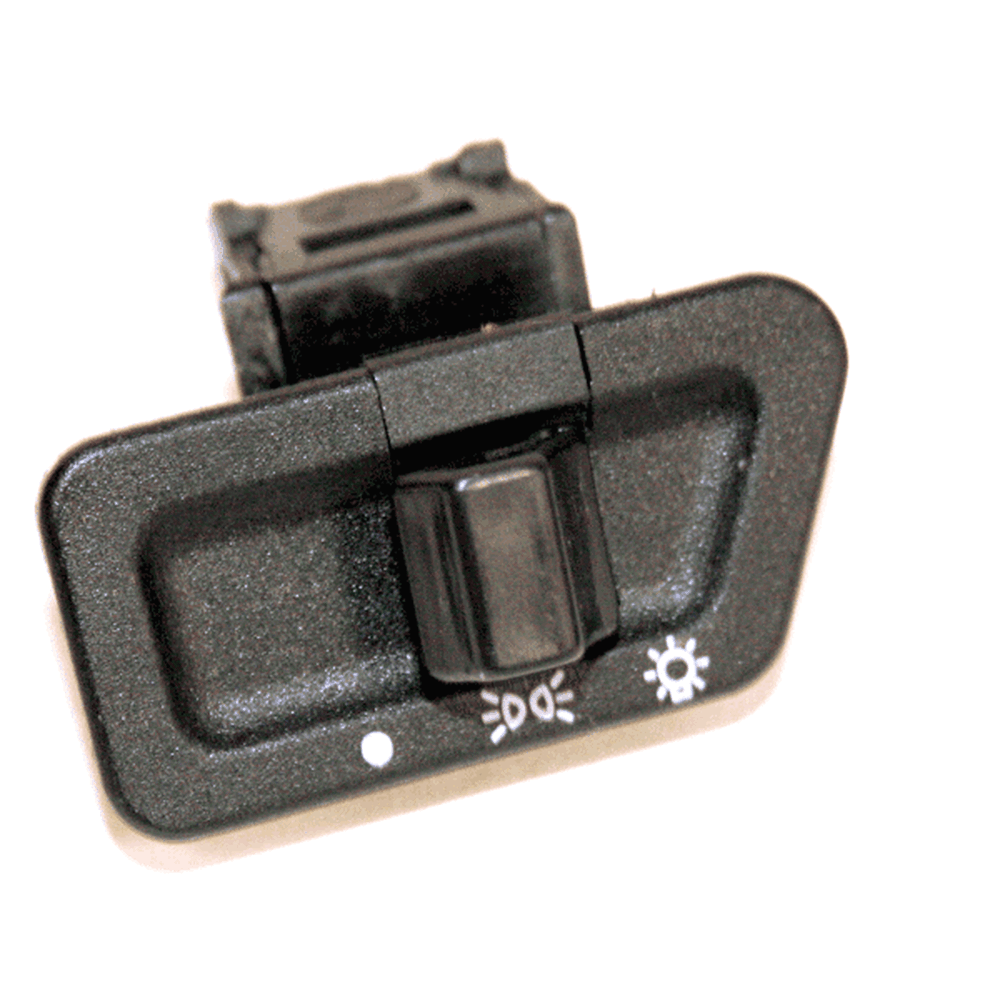

The headlight switch on a motorcycle controls the activation and deactivation of the headlight. It is usually mounted on the left handlebar and allows the rider to turn the headlight on or off, and in some cases, adjust the headlight’s settings or brightness. The switch may include options for different light modes, such as low beam, high beam, or daytime running lights. Proper use of the headlight switch ensures adequate visibility during various riding conditions and contributes to overall safety.
Manufacturer | Model | Diagram |
---|---|---|
Baotian | Hawk 125 [BT125T-7] | |
Direct Bikes | 125cc Cruiser | |
125cc Cruiser E3 [DB125T-7] | ||
125cc Cruiser E3 [DB125T-7H] | ||
DB125T-9 | ||
Haotian | Swift 100 [HT100-8] | |
Jinlun | 125cc Cruiser Scooter [JL125T-12A] | |
Jonway | Adventure 125 [YY125T-12] | |
Agility 50 [YY50QT-6] | ||

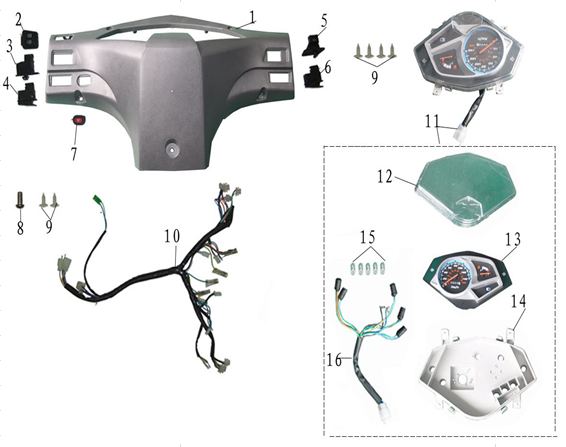

Lexmoto | FM 50 [WY50QT-111] | View parts diagram |
FMS 125 [ZN125T-7H] | View parts diagram | |
FMX 125 EFI [WY125T-108-E4] | View parts diagram | |
FMX 125 [WY125T-108] | View parts diagram | |
Gladiator 125 | View parts diagram | |
Urban 125 [LJ125T-16] | View parts diagram | |
Lifan | LF125T-6 | |
Pulse | Strider 125 [SB125T-23A] | |
Romet | City 125 [CITY125] | |
Sanben | Gladiator 125 (06/07) [SB125T-23] | |
SB125T-23B | ||
Sinnis | Shuttle 125 [ZN125T-7H(SINNIS)] | |
Skygo | Commander | |
Sukida | Alien 125 [SK125T-14] | |
Commander [SK125T-18] | ||
Wangye | WY125T-23A | |
WY125T-23B | ||
Wuyang | WY125-24B | |
Yiben | Gladiator 125 [YB125T-15(B)] | |
Strider 125 [YB125T-15] | ||
