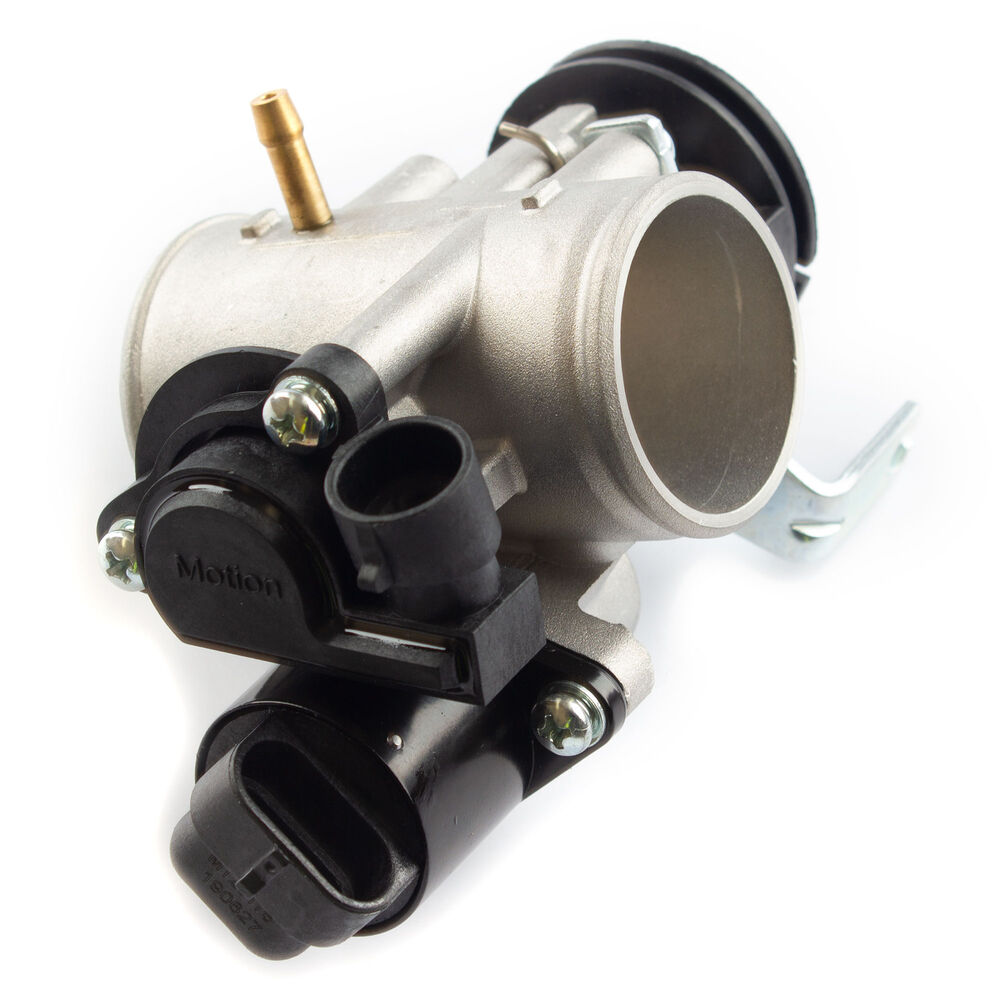

THRB020
The throttle body is a critical component in a motorcycle’s fuel injection system. It controls the amount of air entering the engine by adjusting the throttle plate or valve based on the rider's input through the throttle grip. The throttle body regulates airflow, which, combined with fuel injected by the system, determines engine performance and responsiveness. Typically housed in a chamber with sensors and actuators, the throttle body ensures smooth acceleration, efficient fuel consumption, and optimal engine performance by precisely managing air intake.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | LXR 125 Euro 5 [SY125-10-E5] | View parts diagram |
LXS 125 Euro 5 [TR125-GP2-E5] | View parts diagram | |
RSS 125 Euro 5 [TR125-3-E5] | View parts diagram | |
RSS 125 Scrambler Euro 5 [TR125-3-S-E5] | View parts diagram | |
Mitt | MITT 125 GP 2 [MITT125GP2] | |
Sinnis | Terrain T125 [ZS125-86(T125)] | |
Taro | TR125-3 | |
