ARFA006

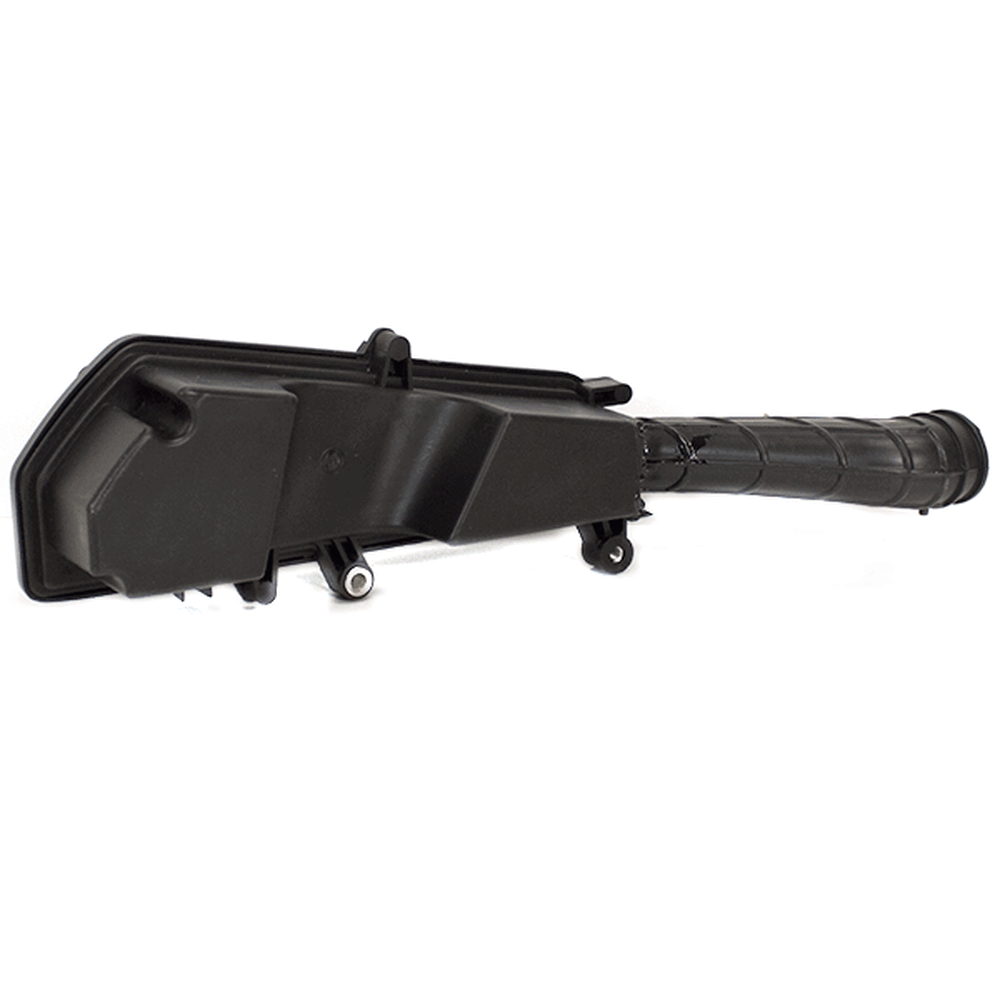

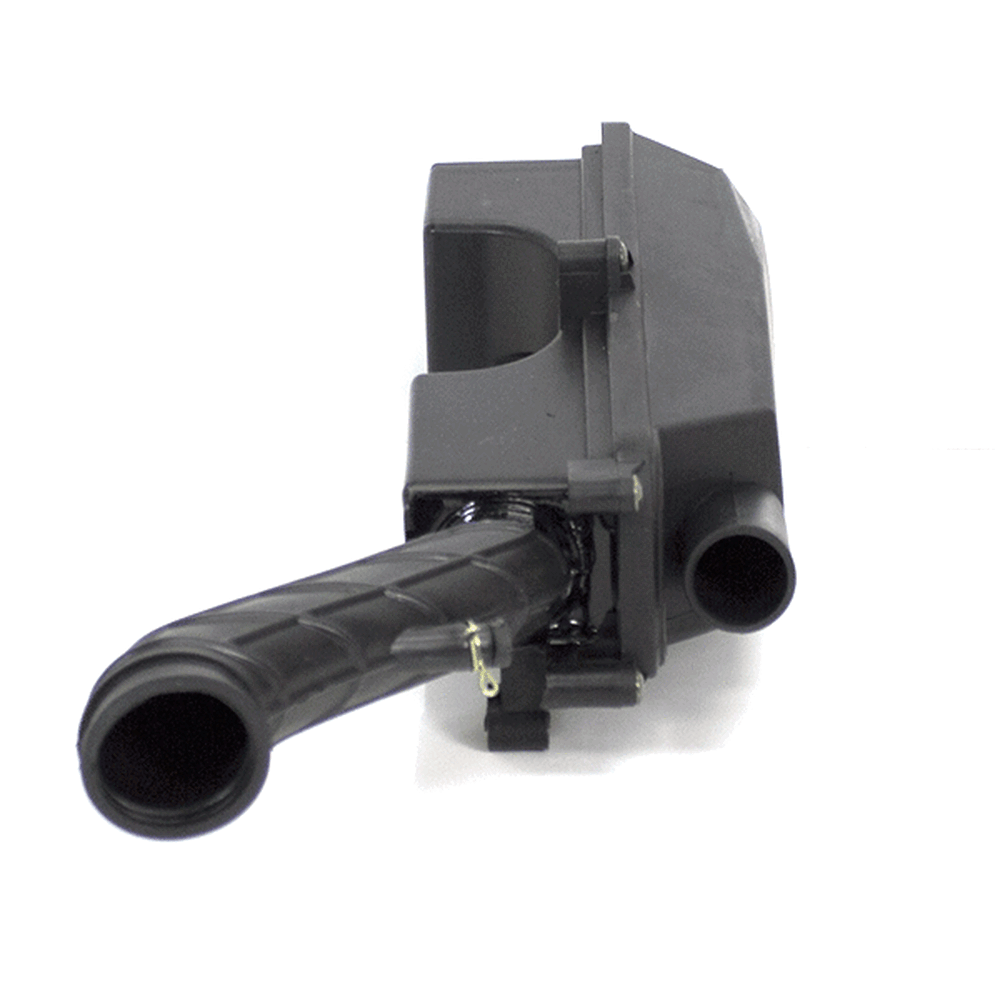

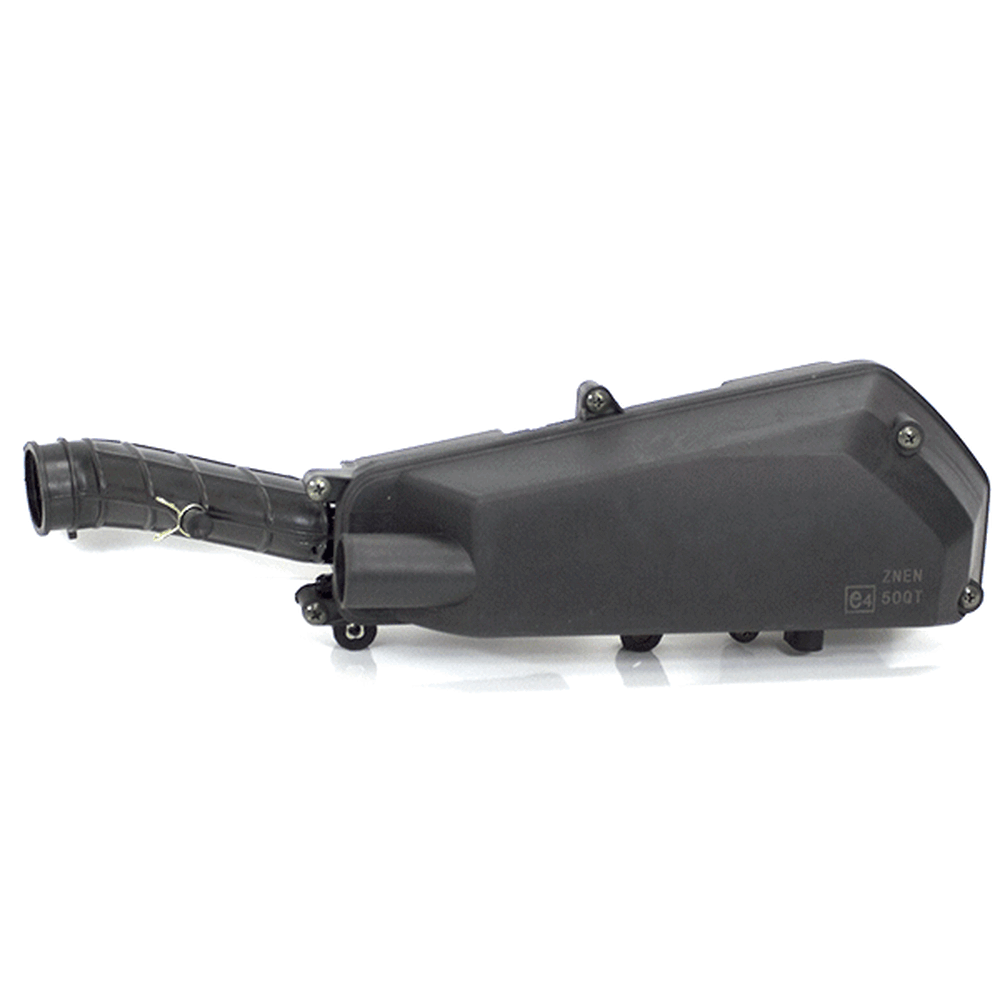

An airbox is an empty chamber on the inlet of most combustion engines. It collects air from outside and feeds it to the intake hoses of each cylinder.
The airbox allows the use of one air filter instead of multiple filters thus reducing complexity. Developments arising from concerns about engine emissions during the late 1970s now allow the airbox to collect gases from the crankcase and the tank air vent and re-feed them to the engine.
Manufacturer | Model | Diagram |
---|---|---|
BTM | BT49QT-9 | |
Baotian | BT49QT-9 | |
BT50QT-9 | ||
Chase 49 [BT49QT-7] | ||
Scout 50 | ||
Tommy 50 [BT49QT-11] | ||
Benero | BT49QT-9 | |
CTM | CTM50QT-7 | |
Chituma | CTM50QT-7 | |
Direct Bikes | 50cc Ninja | |
50cc Retro | ||
50cc Sports | ||
50cc Tommy E3 [DB50QT-E] | ||
DB50QT-16 | ||
Hanglong | HL50QT-16 | |
LB50QT-16 | ||
Haotian | Bubble 50 [HT50QT-9] | |
Huatian | HT50QT-16 | |
Sport 50cc | ||
JMSTAR | JSD50QT-13 | |
Jinlun | JL50QT-5 | |
JL50QT-6 | ||
JL50QT-7 | ||
Jonway | Agility 50 [YY50QT-6] | |
Lexmoto | Molly 50 [DFE50QT-3] | |
Scout 49 [BT49QT-9LEX] | View parts diagram | |
Tommy 50 | ||
Tommy 50 [ZN50QT-E] | ||
Valencia 50 [ZN50QT-K] | View parts diagram | |
Lifan | Jet 50 [LF50QT-2A] | |
LF50QT-8D | ||
Lintex | HT50QT-16 | |
Peugeot | V-Clic [V-CLIC] | |
Pulse | Scout 49 | View parts diagram |
Storm 50 [HT50QT-6] | ||
Qingqi | QM50QT-6A | |
Recto | Retro | |
Rex | RS450 | |
Rhon | Phantom [LH50QT-9] | |
Skygo | Top 1 | |
Urban | ||
Sukida | Top 1 [SK50QT] | |
Superbyke | MPED 50 | |
Tamoretti | Retro 50 | |
Xingyue | Phoenix 50 [LLX50QT] | |
Yiben | Scout 50 [YB50QT-3] | |
Storm 50 [YB50QT-6] | ||
Zing Bikes | Echo 50cc [LF50QT-8D] | |
Znen | Speedy Streetfighter | |
Tommy 50 [ZN50QT-A] | ||
ZN50QT-11 | ||
ZN50QT-E | ||
