A bolt in a motorcycle is a threaded fastener used to join or secure components together. It typically consists of a head and a shaft with external threads that engage with a corresponding nut or threaded hole. Bolts are used in various applications, including assembling engine parts, mounting accessories, and securing frame components.

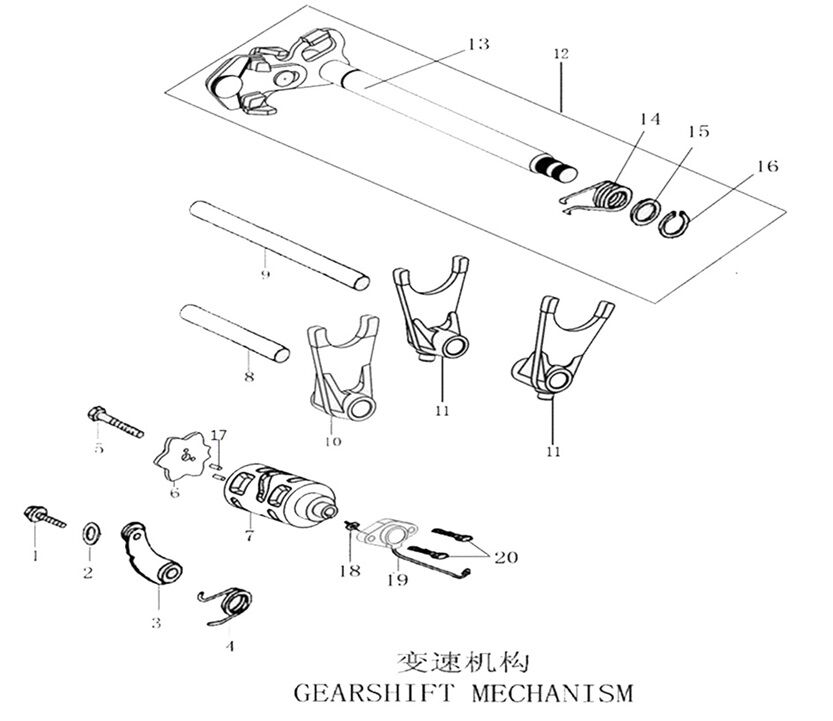

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | |

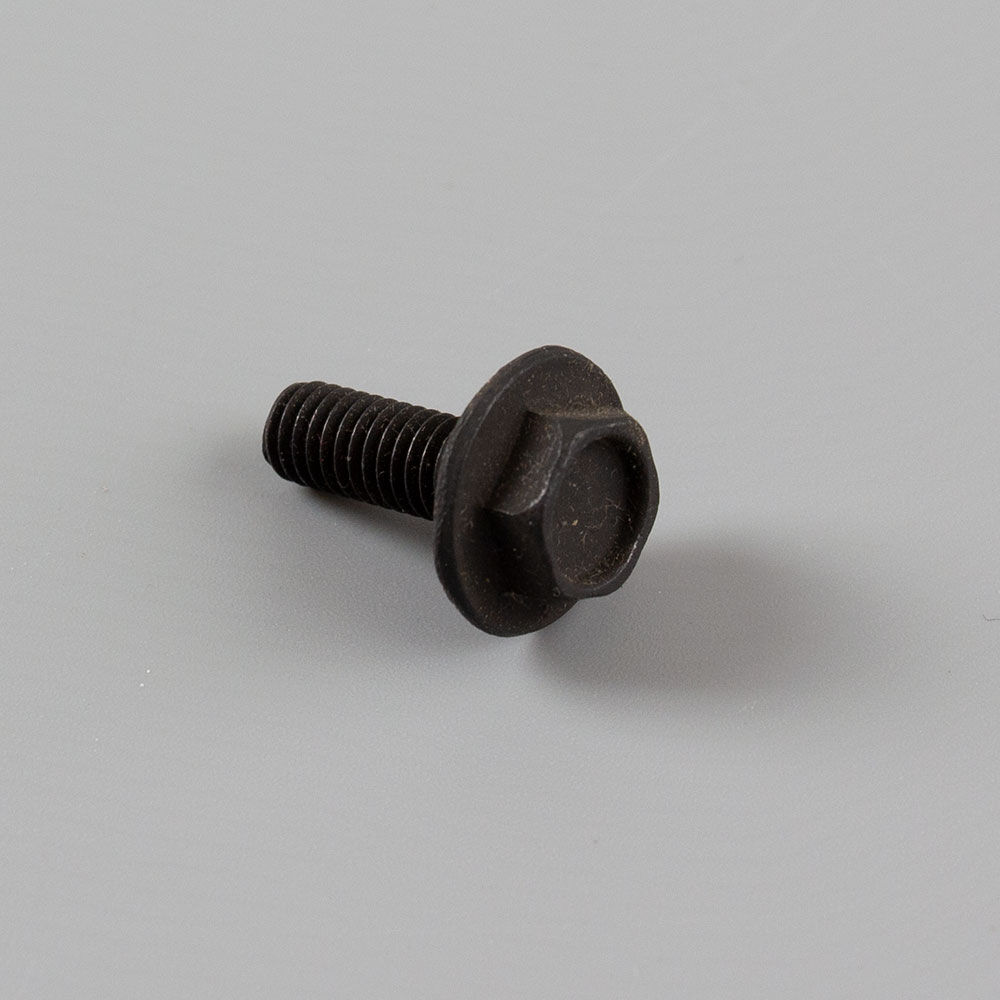

Flanged Hex Bolt M6 x 15mm BLT210 x 1
|
£1.49 | |
| 2 | |

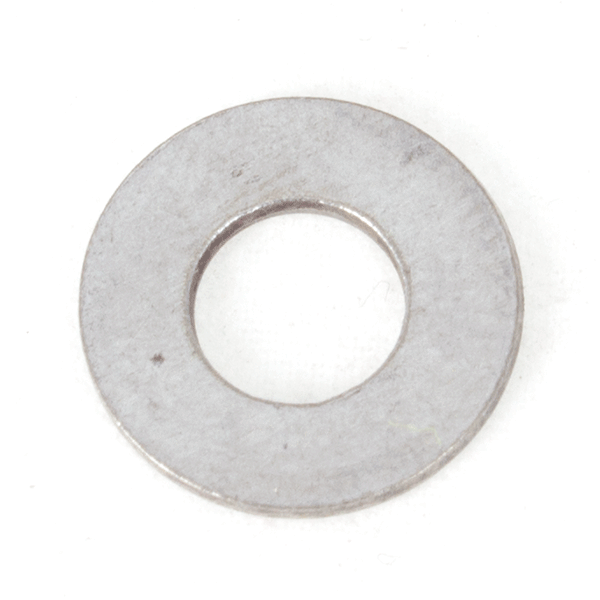

Washer M6 x 1 x 14mm WSH95 x 1
|
£1.49 | |
| 3 | |

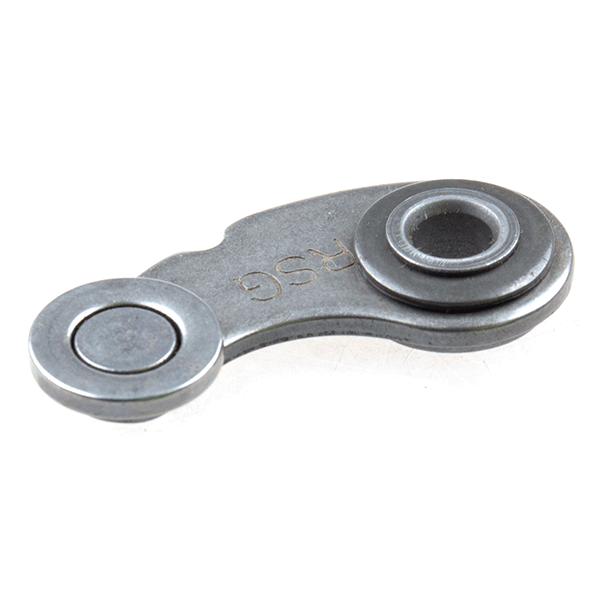

Gear Selector Drum Stopper GRSDS002 x 1
|
£1.99 | |
| 4 | |
Gear Selector Drum Spring SPNG146 x 1
|
£1.49 | |
| 5, 17 | |
Hex Bolt M6 x 20mm BLT072 x 1
|
£1.99 | |
| 6 | |
Gear Selector Cam GRSC014 x 1
|
£6.49 | |
| 7 | |
Gear Selector Drum GRSD003 x 1
|
£12.49 | |
| 8 | |
Gear Selector Shaft Short GRSS019 x 1
|
£2.49 | |
| 9 | |
Gear Selector Shaft Long GRSS022 x 1
|
£2.49 | |
| 10 | |
Gear Selector Fork (2) GRSF024 x 1
|
£7.49 | |
| 11 | |
Gear Selector Fork (1) GRSF022 x 1
|
£7.49 | |
| 12 | |
Gear Selector Shaft for ZS125-48E, ZS125-48F GRSS036 x 1
|
£15.49 | |
| 13 | |
Gear Selector Shaft GRSS035 x 1
|
£13.99 | |
| 14 | |
Gear Selector Return Spring ZY125 SPNG127 x 1
|
£2.49 | |
| 15 | |
Washer M14 x 1 x 20mm WSH96 x 1
|
£1.49 | |
| 16 | |
Circlip 14mm CCLP004 x 1
|
£3.99 | |
| 19 | |
Gear Position Sensor Pin GRSEN030 x 1
|
£5.49 | |
| 20 | |

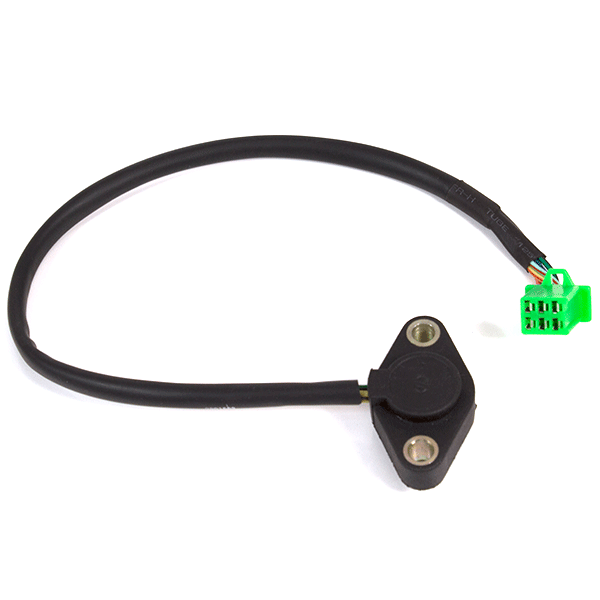

Gear Position Sensor GRSEN014 x 1
|
£6.99 | |
| 21 | |
Flanged Hex Bolt M6 x 24mm BLT213 x 1
|
£2.49 | |
| 22 | |
Pin 3 x 8.5mm DWL023 x 1
|
£2.49 |
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
| LS-Z Euro 5 [ZS125-39-E5] | View parts diagram | |
| LXR 125 E55 [SY125-10-E55] | View parts diagram | |
| LXR 125 SE E55 [SY125-10-SE-E55] | View parts diagram | |
| LXR 125 [SY125-10] | View parts diagram | |
| LXR SE 125 Euro 5 [SY125-10-SE-E5] | View parts diagram | |
| LXR SE 125 Euro 5 [SY125-10-SE-V2] | View parts diagram | |
| LXR SE 125 [SY125-10-SE] | View parts diagram | |
| LXS 125 E55 [TR125-GP2-E55] | View parts diagram | |
| Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
| Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
| R66S E55 [SR125-2-E55] | View parts diagram | |
| RSS 125 Euro 5 [TR125-3-E5] | View parts diagram | |
| RSS 125 Scrambler Euro 5 [TR125-3-S-E5] | View parts diagram | |
| RX1 125 E55 [ZS125-86C-E55] | View parts diagram | |
| Tempest 125 Euro 5 [LJ125-9A-E5] | ||
| Tempest 125 [LJ125-9A] | View parts diagram | |
| Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
| Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
| ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
| ZSX-F 125 [ZS125-48E] | View parts diagram | |
| ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
| ZSX-R 125 [ZS125-48F] | View parts diagram | |
| Taro | TR125-3 | |
| Zongshen | ZS125-39 | |
