BLTCH020"In the category of Cylinders and Cylinder heads, Cylinders"
Cylinder-head bolts are the connecting elements between engine block, cylinder-head gasket, and cylinder head. The bolt tightening force is an important factor for the mutual sealing of combustion chamber, lubricant and coolant channels, and the ambient air.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | |
Cylinder Head CYLH117 x 1
|
£45.49 | |
| 2 | |
Inlet Valve VLVIN047 x 1
|
£8.99 | |
| 3 | |
Exhaust Valve VLVEX047 x 1
|
£12.49 | |
| 4 | |
50/100/125cc Valve Stem Oil Seal VLVOS002 x 1
|
£3.49 | |
| 5 | |
Valve Spring VLVS030 x 1
|
£2.49 | |
| 6 | |
Spring VLVSR002 x 1
|
£3.49 | |
| 7 | |
Inlet/Exhaust Valve Collets VLVC033 x 1
|
£1.99 | |
| 8 | |
Rocker Arm RKA034 x 1
|
£5.49 | |
| 9 | |
Rocker Arm Shaft RKAS011 x 1
|
£4.99 | |
| 11 | |
NGK CR6HSA Spark Plug SPRK031 x 1
|
£7.99 | |
| 12, 14 | |
Cylinder Head Inspection Cap for LJ50QT-N, LJ50QT-9M, LJ50QT-6L CYHDI010 x 1
|
£7.49 | |
| 13 | |
Head Gasket GSKH044 x 1
|
£6.49 | |
| 15 | |
Engine Dowel 10 x 4mm DWL003 x 1
|
£3.49 | |
| 16 | |

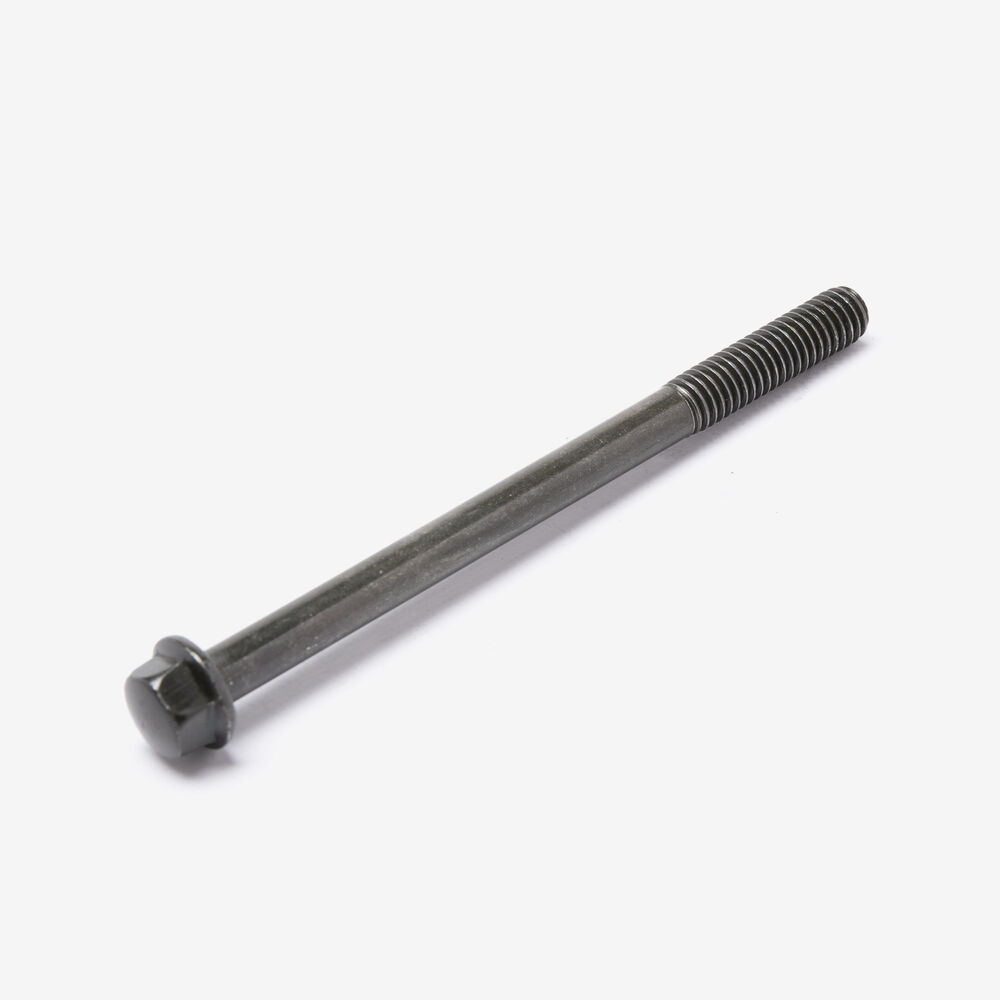

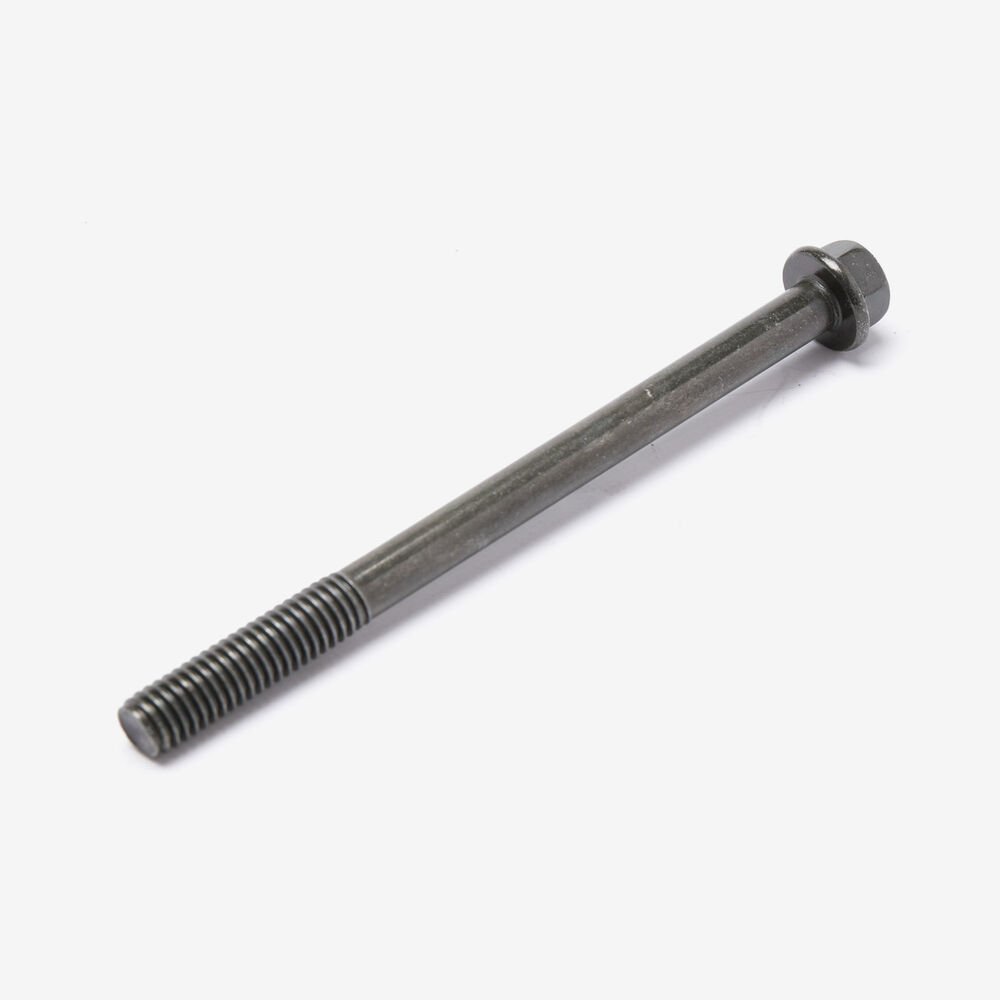

Cylinder Head Bolts M6 x 80mm BLTCH020 x 1
|
£8.99 | |
| 17 | |
Cylinder Head Studs 6 X 32 STDCH041 x 1
|
£2.49 | |
| 18 | |
Cylinder Head Washer 6x16x2.5mm WSH0093 x 1
|
£1.99 | |
| 19 | |
M6 Chrome Chrome Exhaust Domed Nut M6 x 17mm EXNUT009 x 1
|
£5.49 |
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram |
| Diablo 50 [LJ50QT-9M] | View parts diagram | |
| Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
| Echo+ 50 [LJ50QT-6L] | View parts diagram | |
| Nano 50 [LJ50QT-N] | View parts diagram | |
