BRDF101

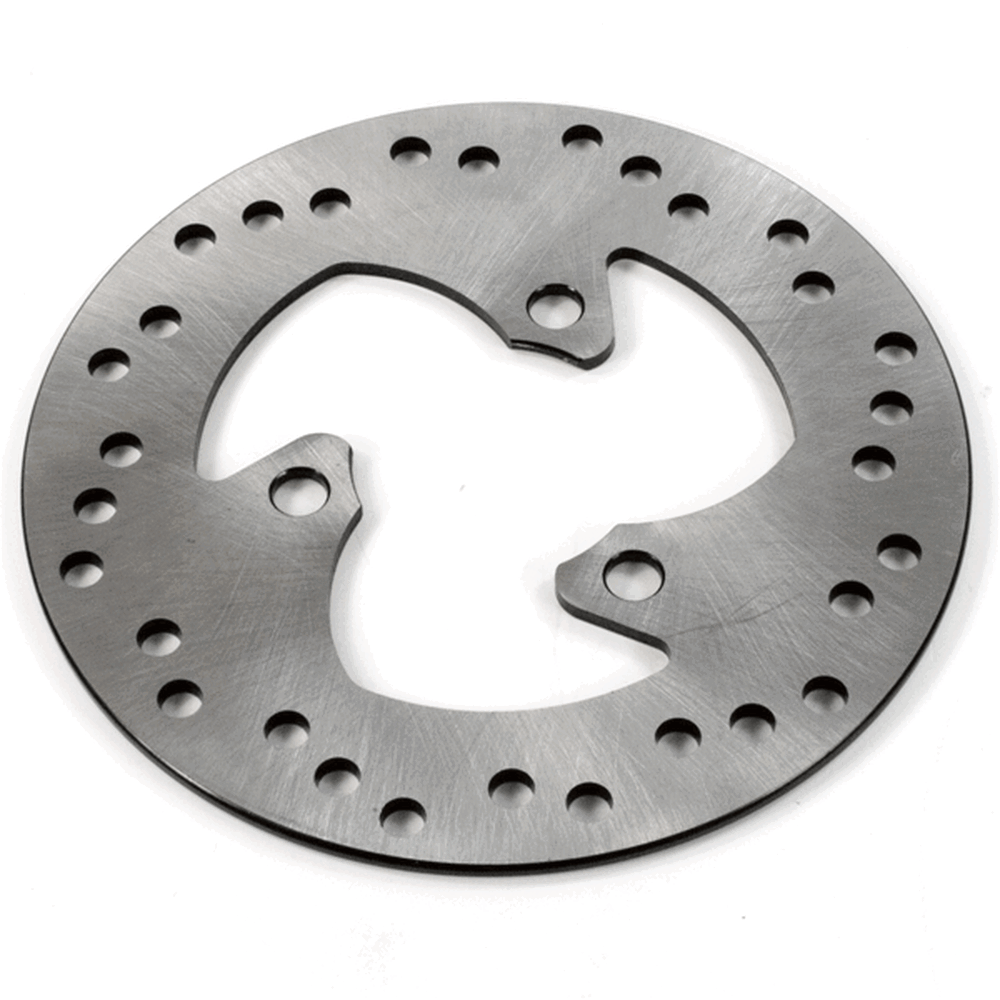

The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.
Manufacturer | Model | Fitment | Diagram |
---|---|---|---|
Direct Bikes | 50cc Scorpion E3 [DB50QT-32A] | Front | |
50cc Viper E3 [DB50QT-32] | Front | ||
125cc Scorpion E3 [DB125T-32A] | Front | ||
125cc Spyder E3 [DB125T-22] | |||
125cc Viper E3 [DB125T-32] | Front | ||

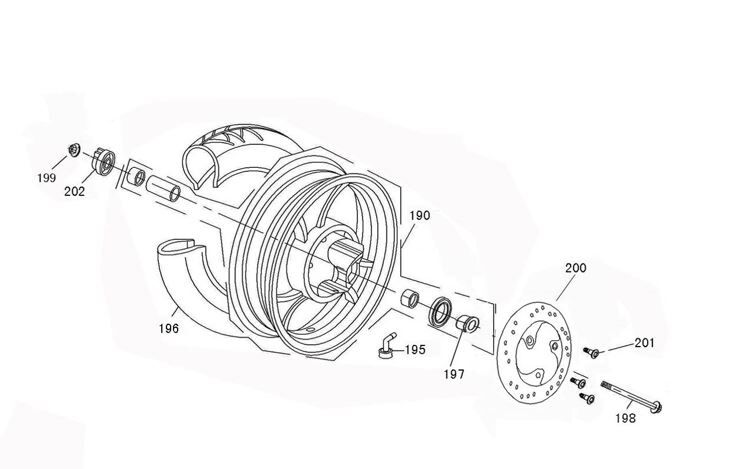

Lexmoto | Nano 50 [LJ50QT-N] | Alternative Front | View parts diagram |
Longjia | LJ50QT-K (2T) | ||
Pulse | Phantom 50 [ZN50QT-32A] | Front | |
Phantom 125 [ZN125T-32A] | Front | ||
Rhythm 50 [SB50QT-16] | Front | ||
Sinnis | Harrier 125 [ZN125T-22(SINNIS)] | ||
Wangye | WY50QT-16 | Front | |
Zennco | Matrix | Front | |
Znen | ZN125T-22 | ||
