BRCF006

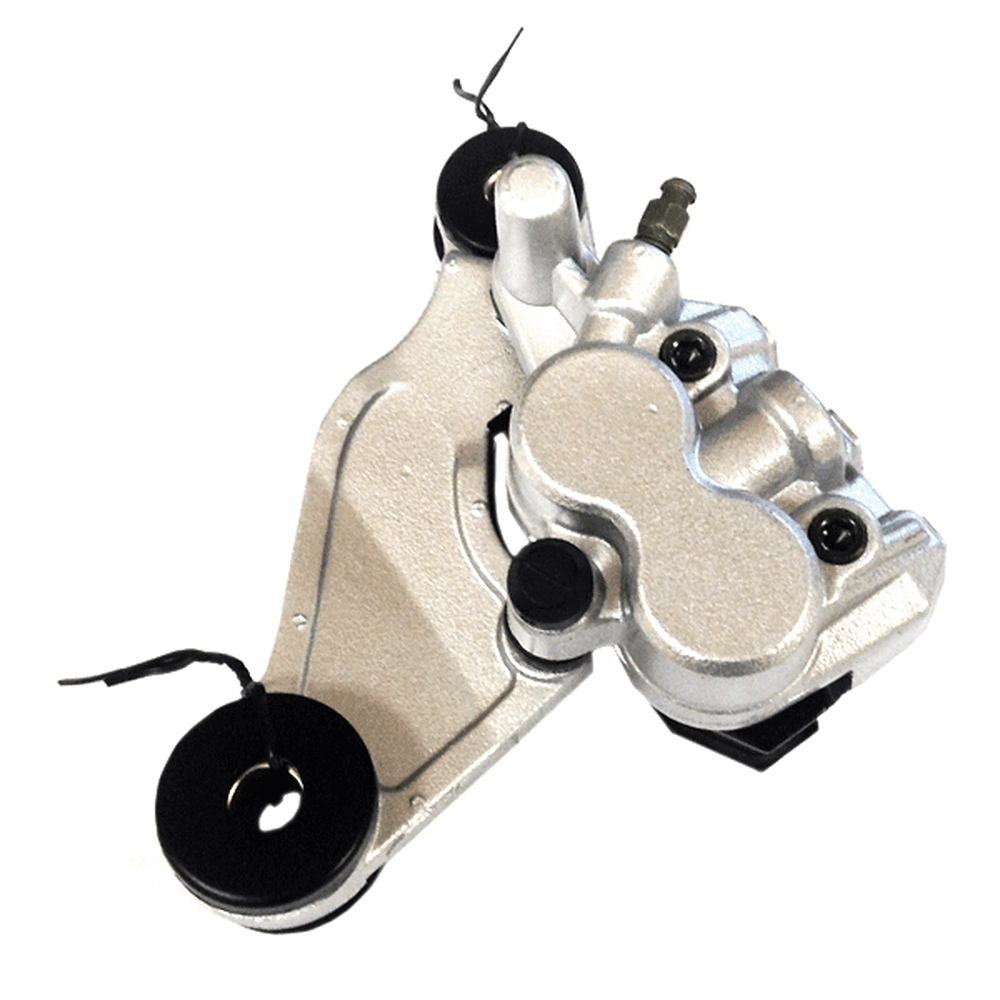

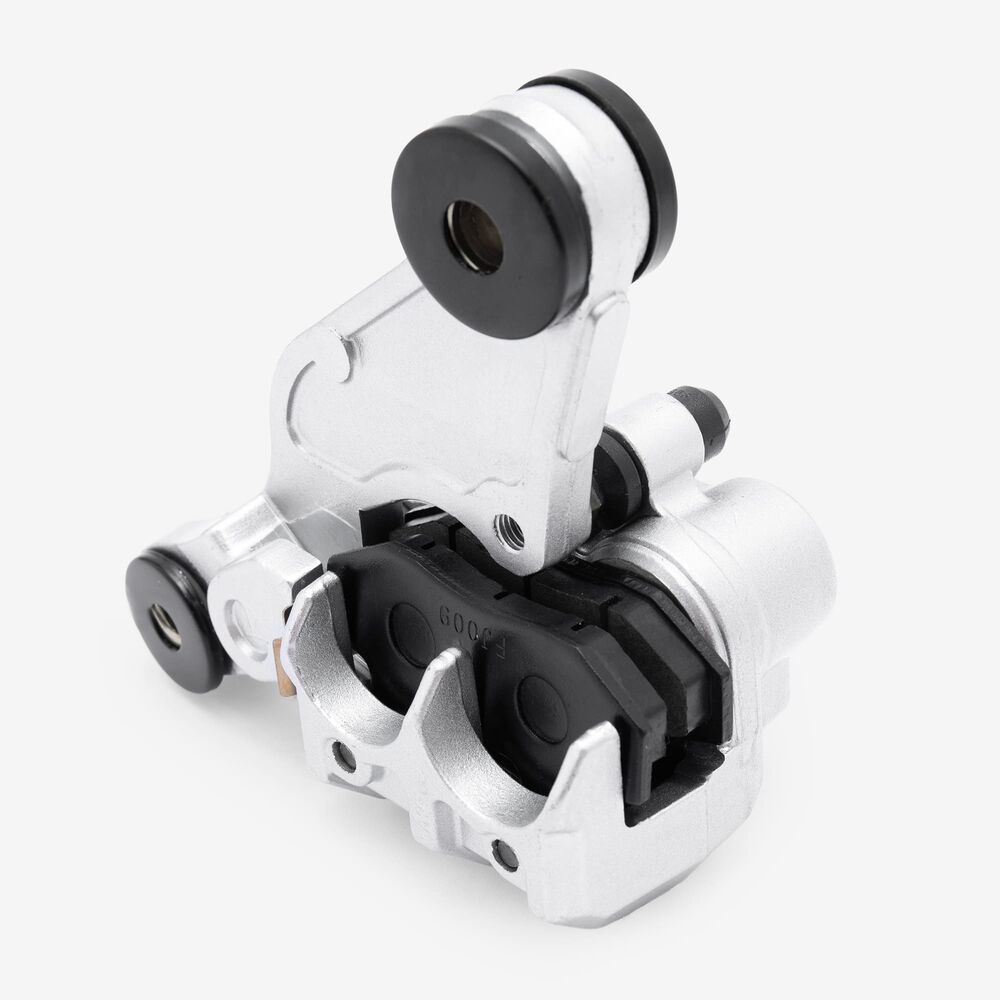

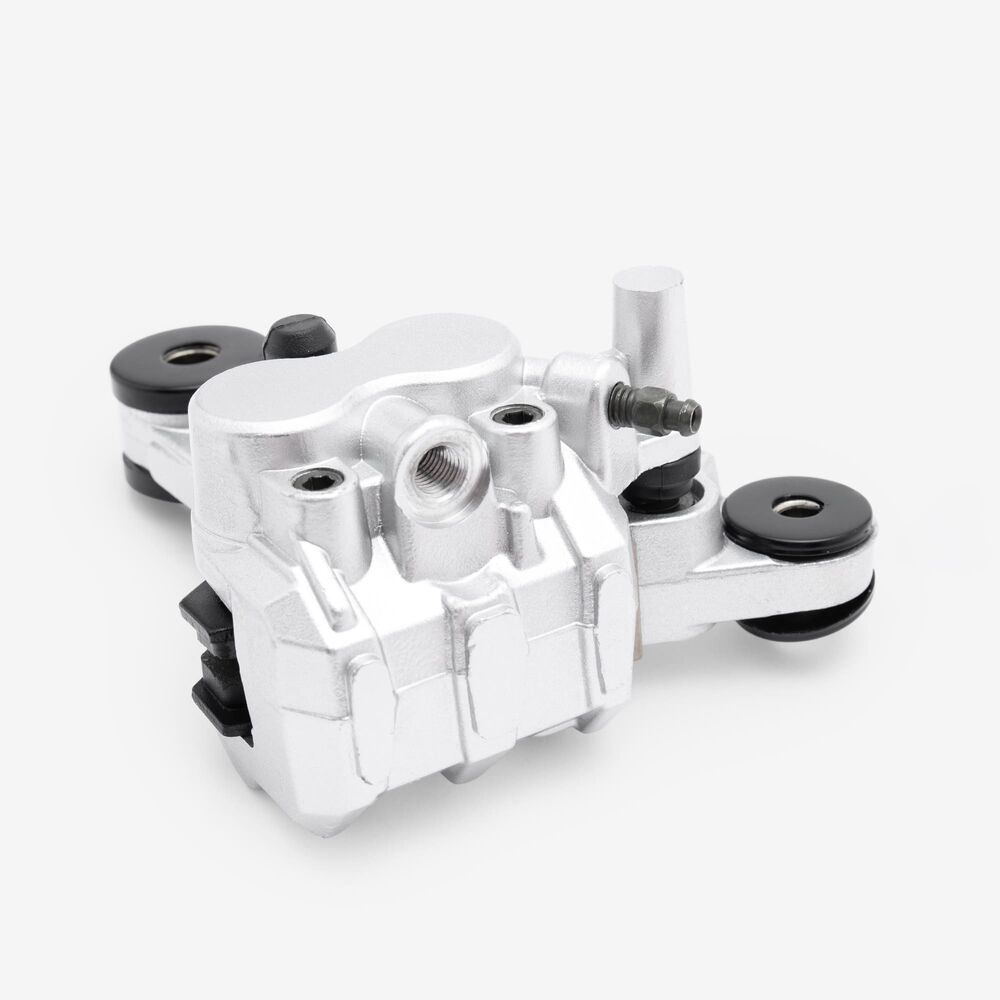

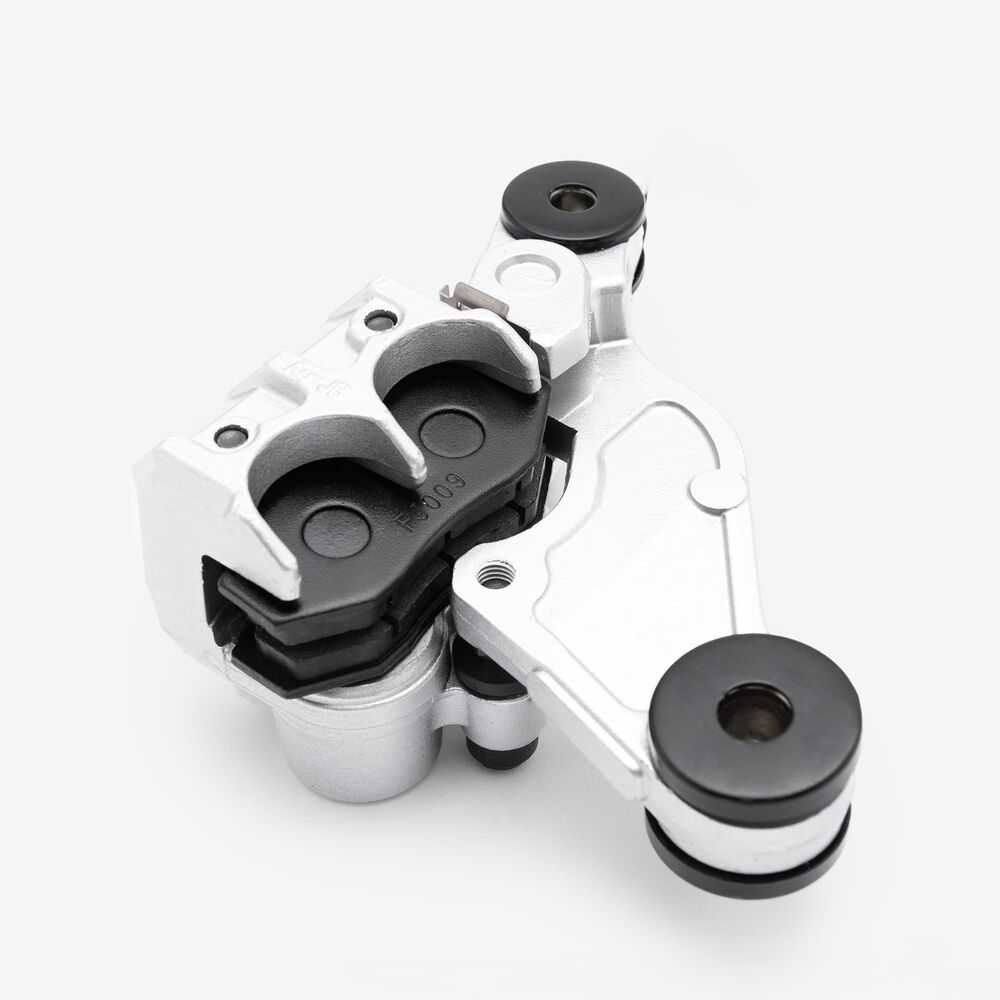

Squeezing the brake lever pushes a hydraulic piston, which sends fluid down the brake lines and into the caliper.
Manufacturer | Model | Diagram |
---|---|---|
AJS | Modena 50 [ZN50QT-27] | |
Modena 125 [ZN125T-27] | ||
Direct Bikes | 50cc Tommy E3 [DB50QT-E] | |
125cc Classic | ||
125cc Tommy E3 | ||
Jinlun | 125cc Tommy Scooter E3 | |
Lexmoto | Firenze 125 | |
Milano 50 [FT50QT-27] | View parts diagram | |
Milano 125 [FT125T-27] | View parts diagram | |
Tommy 50 [ZN50QT-E] | ||
Tommy 125 E3 | ||
Valencia 50 [ZN50QT-K] | View parts diagram | |
Valencia 125 [ZN125T-K] | View parts diagram | |
Verona 125 [WY125T-41] | View parts diagram | |
Sinnis | Spirit 125 [ZN125T-E-S] | |
Tamoretti | Retro 50 | |
Retro 125 E3 | ||
Znen | Firenze 125 [ZN125T-F] | |
Tommy 125 E3 [ZN125T-E] | ||
ZN50QT-E | ||
