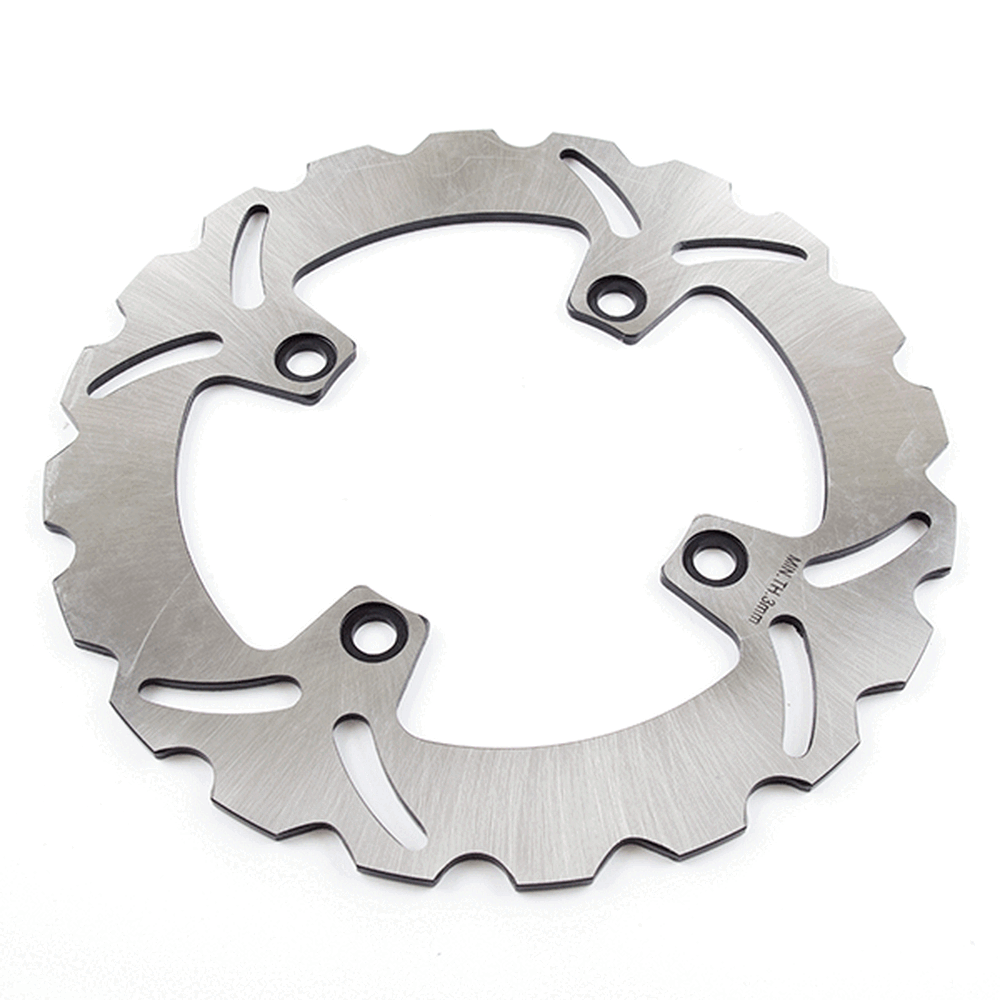

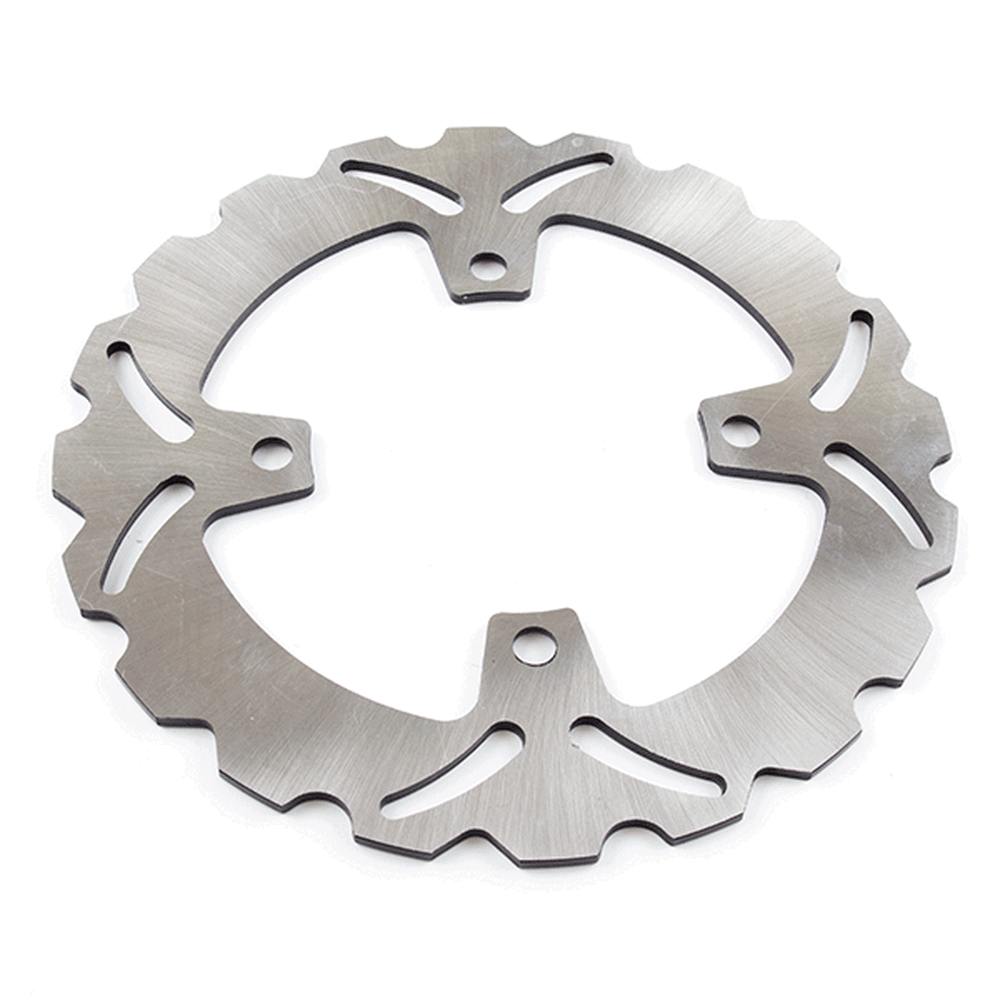

BRDR024
The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | LXR 125 Euro 5 [SY125-10-E5] | View parts diagram |
LXR 125 [SY125-10] | View parts diagram | |
LXR 380 [TR380-GP1] | View parts diagram | |
LXR SE 125 Euro 5 [SY125-10-SE-E5] | View parts diagram | |
LXR SE 125 Euro 5 [SY125-10-SE-V2] | View parts diagram | |
LXR SE 125 [SY125-10-SE] | View parts diagram | |
LXS 125 Euro 5 [TR125-GP2-E5] | View parts diagram | |
Mitt | MITT 125 GP 2 [MITT125GP2] | |
MITT 125 GP [MITT125GP] | ||
MITT 400 GPR [MITT400GPR] | ||
