BRDR061

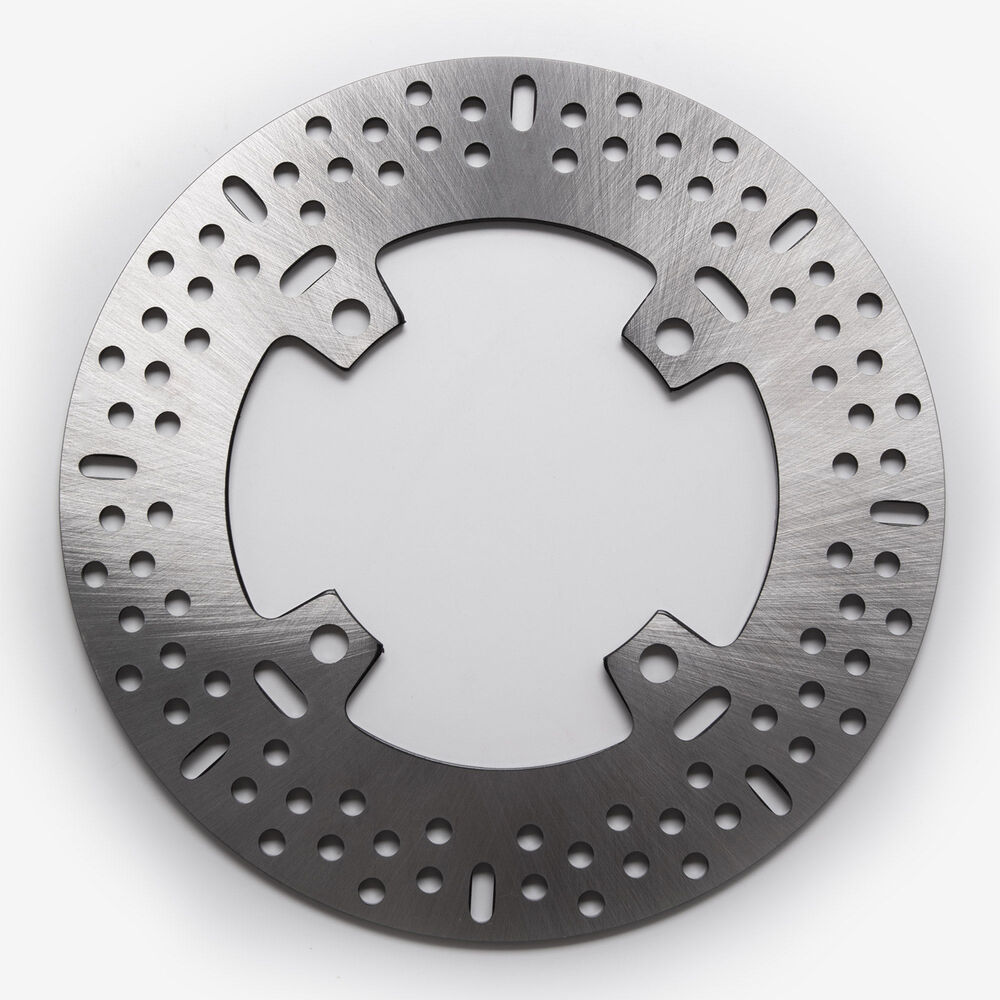

The brake rotor (disc) which rotates with the wheel, is clamped by brake pads (friction material) fitted to the caliper from both sides with pressure from the piston(s) (pressure mechanism) and decelerates the disc rotation, thereby slowing down and stopping the vehicle.

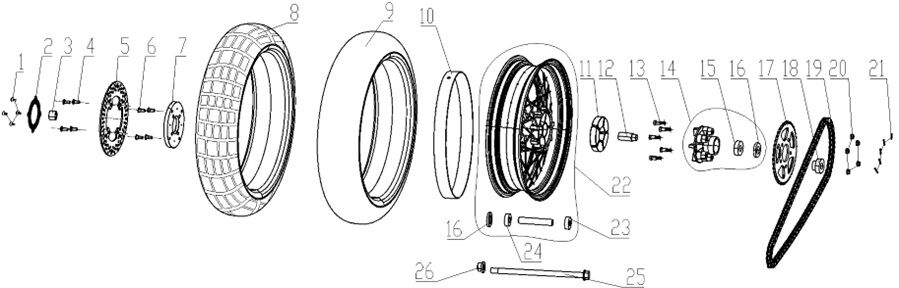

Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | RSS 125 Euro 5 [TR125-3-E5] | View parts diagram |
RSS 125 Scrambler Euro 5 [TR125-3-S-E5] | View parts diagram | |
Taro | TR125-3 | |
