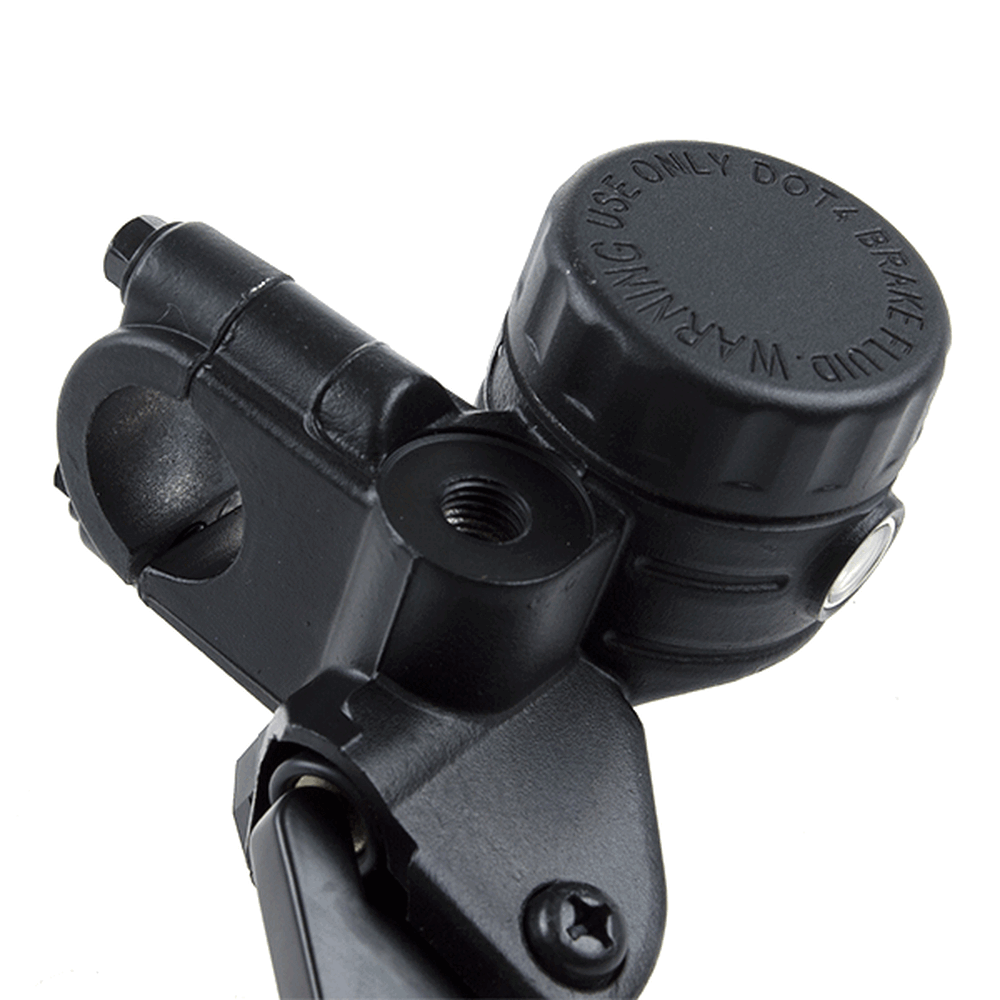

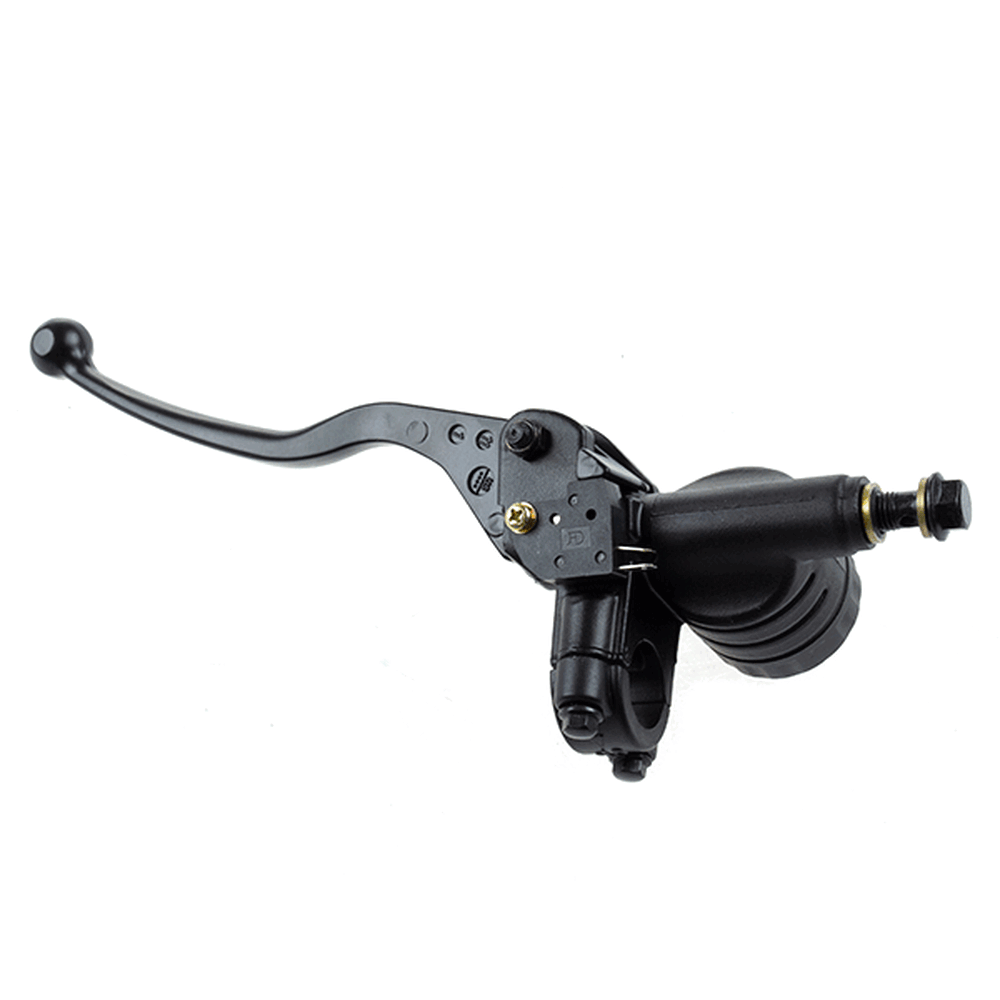

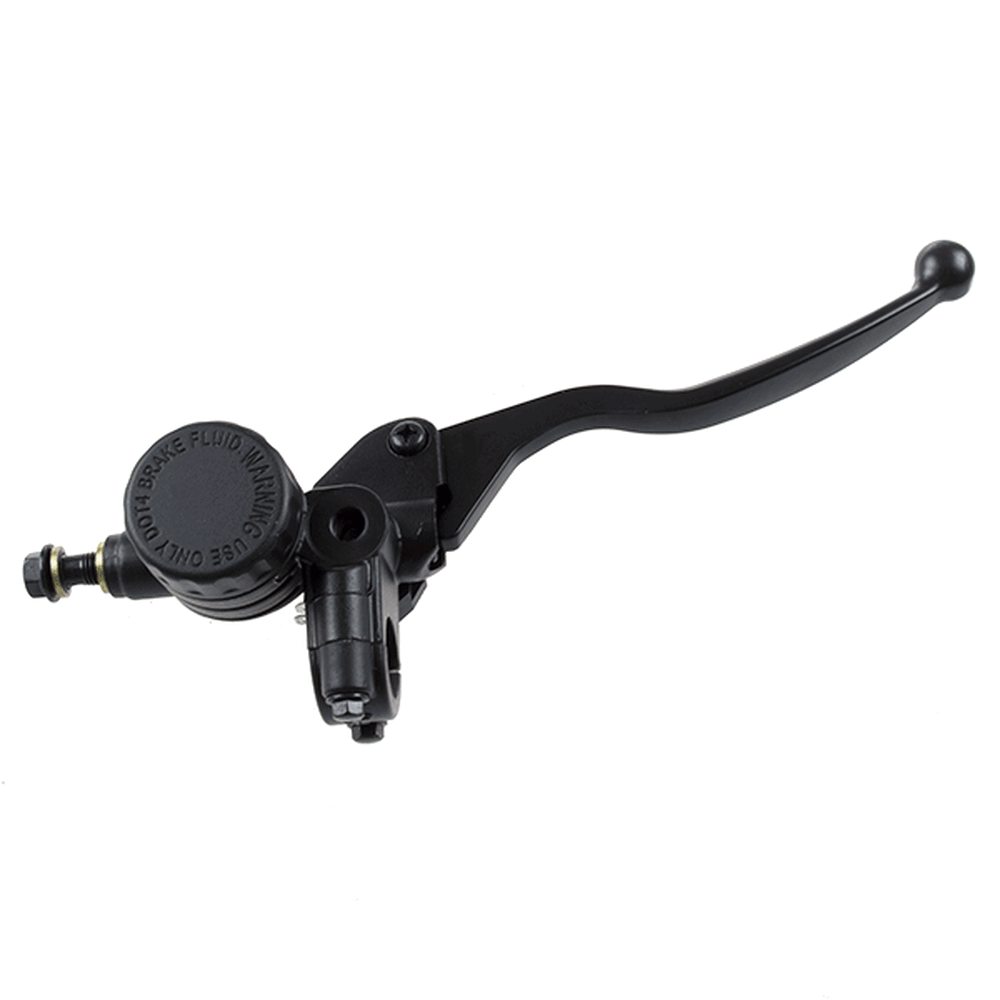

BRMCF083"In the category of Master Cylinders and Fluid Reservoirs, Master Cylinders"
The master cylinders on both the front and the rear of the bike are basically the same – a piston that pushes brake fluid down the lines to the caliper (the slave), in turn forcing the pistons out to press the brake pads against the disc.
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Tempest 125 Euro 5 [LJ125-9A-E5] | |
| Tempest 125 [LJ125-9A] | View parts diagram | |
| Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
| Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
| Vendetta 250 [LJ250-3V] | View parts diagram | |
| Romet | SCMB 125 [SCMB125] | |
