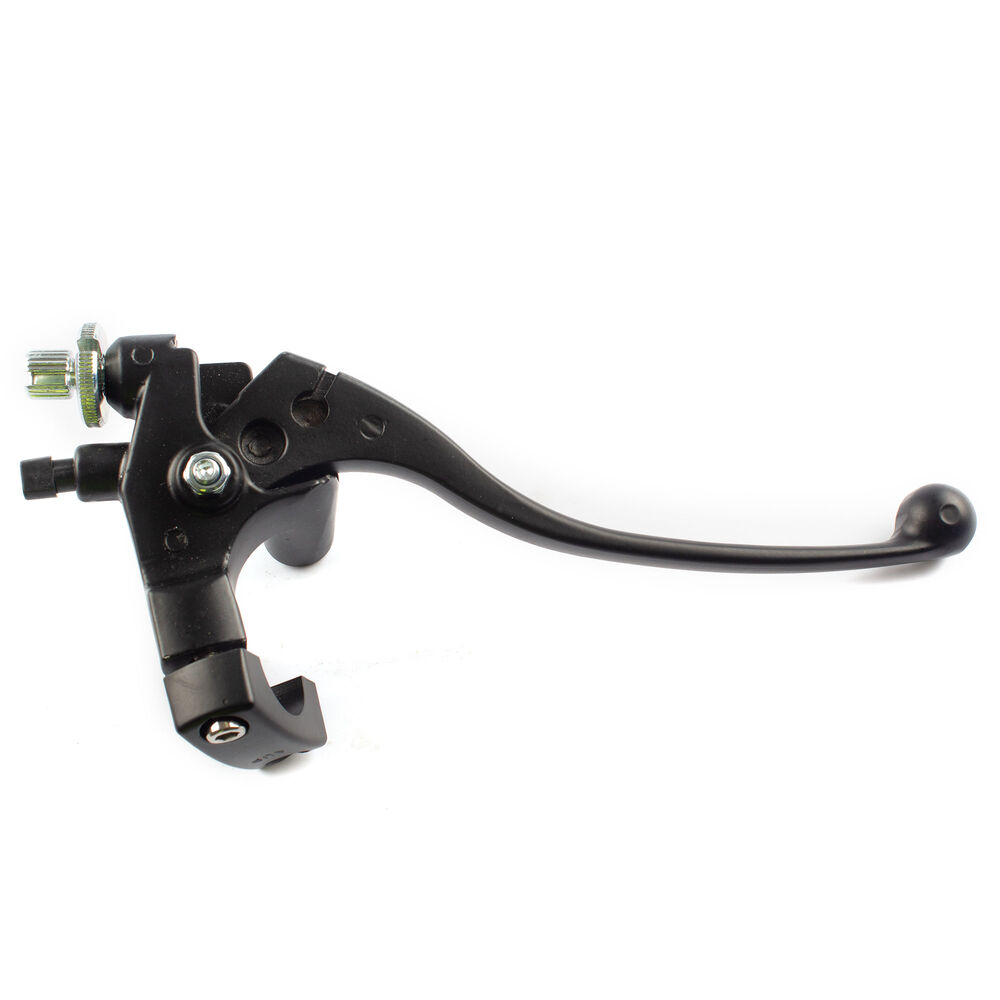

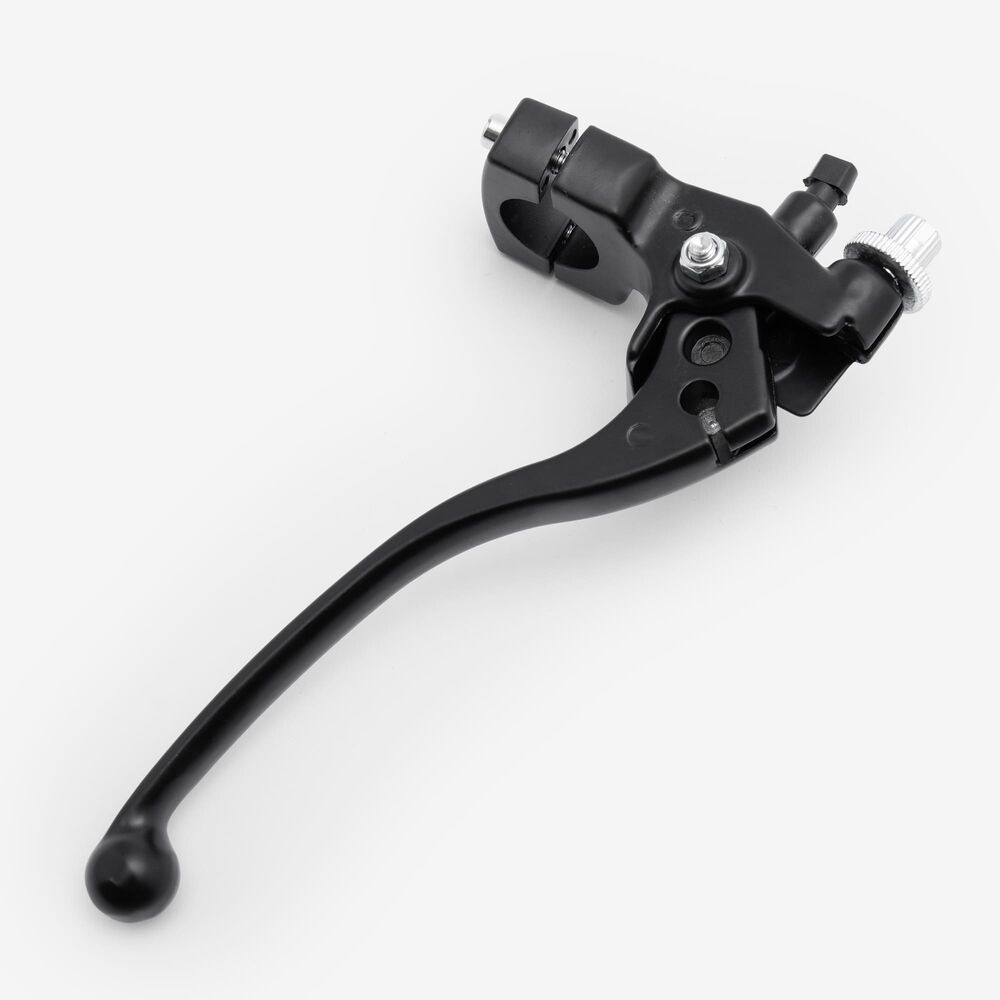

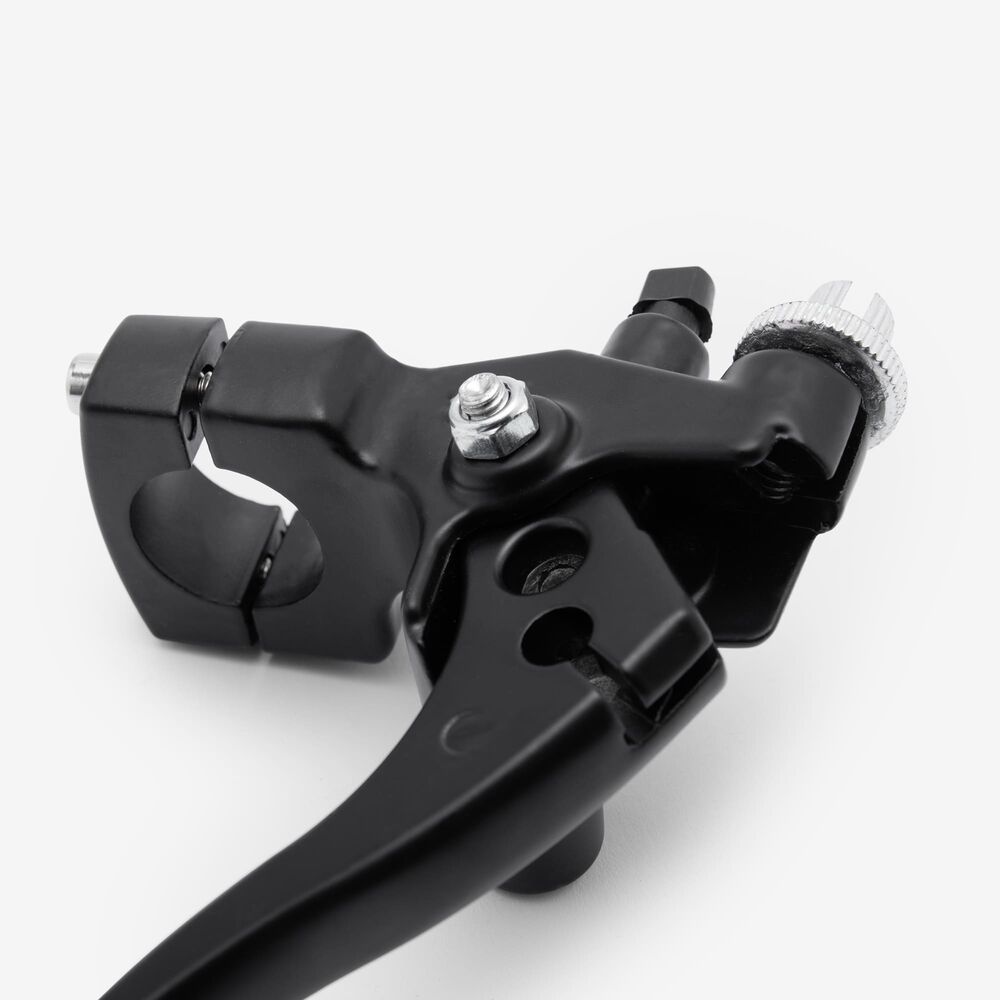

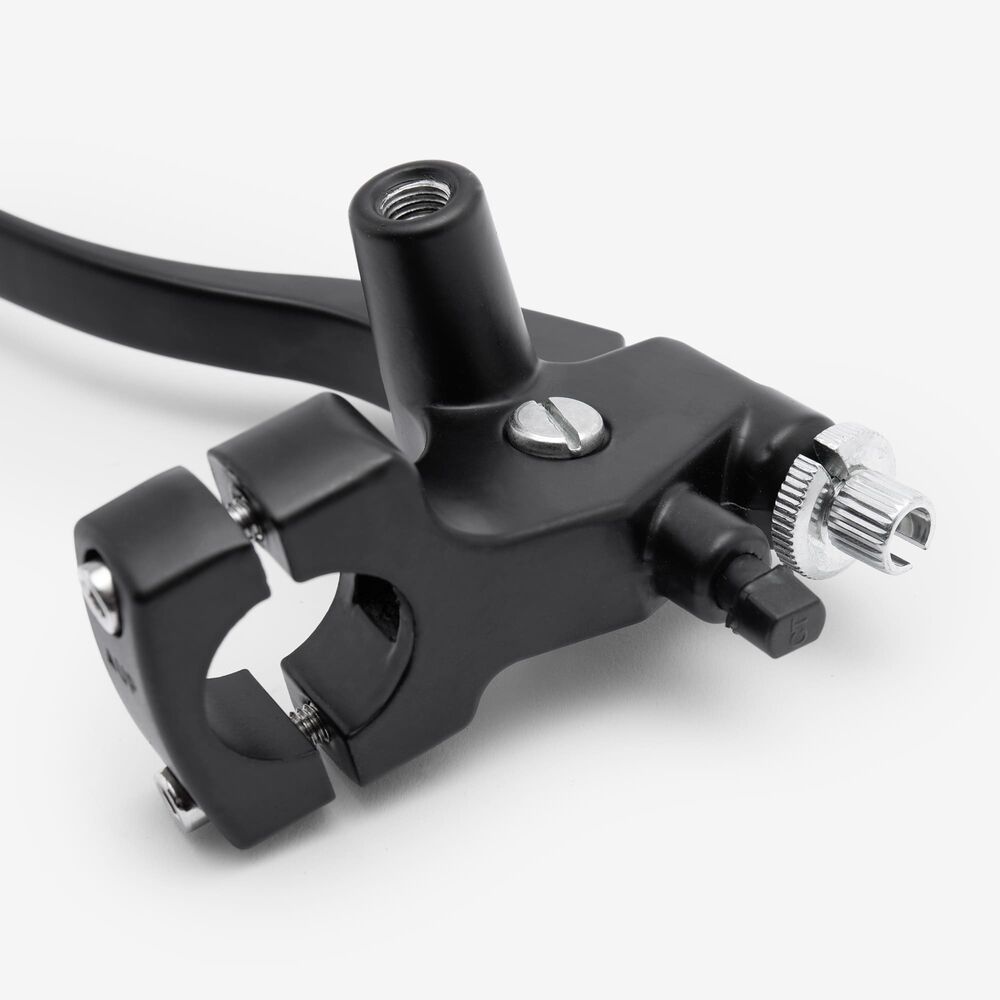

CLLVR017
When you pull the clutch lever in, the action causes the compressed springs on the pressure plate to retract. As a result, the friction and steel plates which are forced together separate and begin to rotate independently, disconnecting the engine from the transmission system.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Michigan 125 EFI [ZS125-79-E4] | View parts diagram |
Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
