CMCHN019

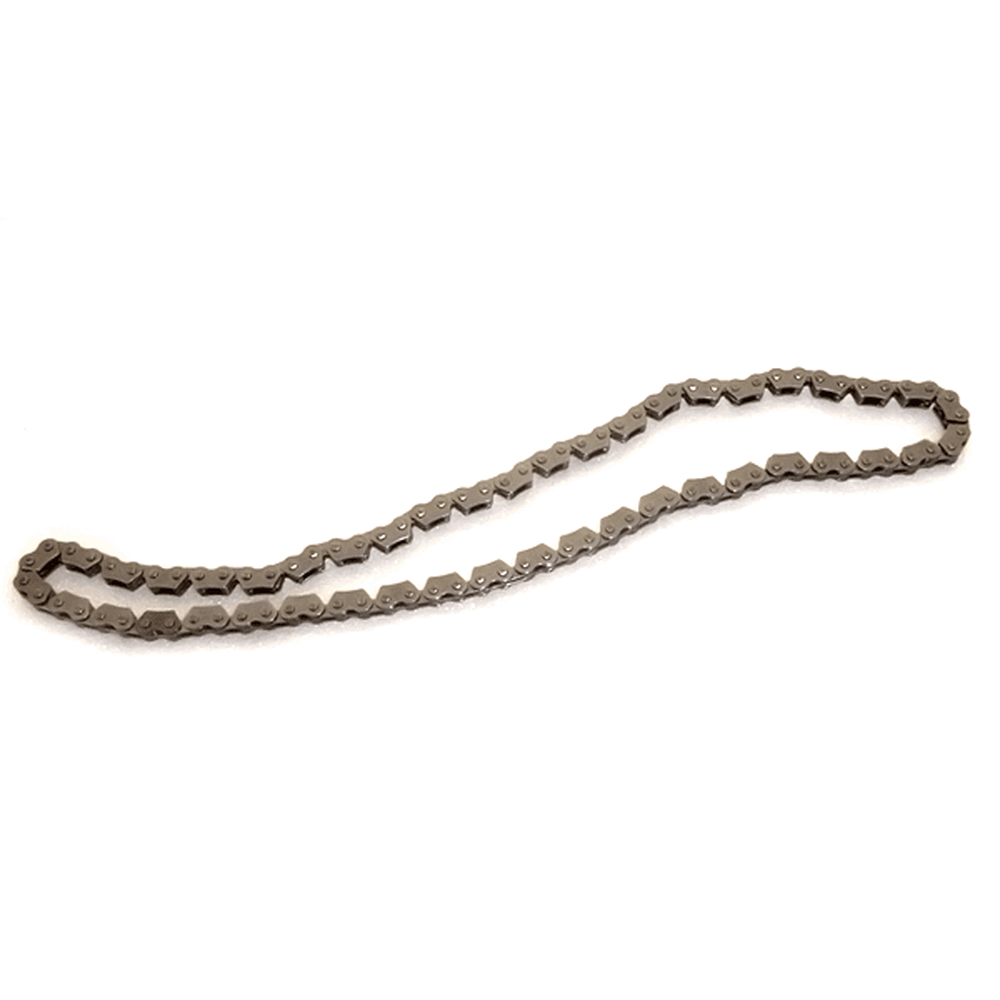

A timing chain synchronizes the rotation of the crankshaft and camshaft(s) ensuring proper timing and allows the engine's valves to open and close during each cylinder's firing. The chain is located inside of the engine and needs to be lubricated by the oil in the engine, making oil maintenance important as well.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Dart 125 [WY125T-100] | |
FMR 125 [WY125T-74R] | View parts diagram | |
Matador 125 [ZS125T-40] | View parts diagram | |
Pulse | Lightspeed 2 125 [WY125T-74] | |
UM | Commando Classic 125 [UM125-CL] | View parts diagram |
