CMCHN022

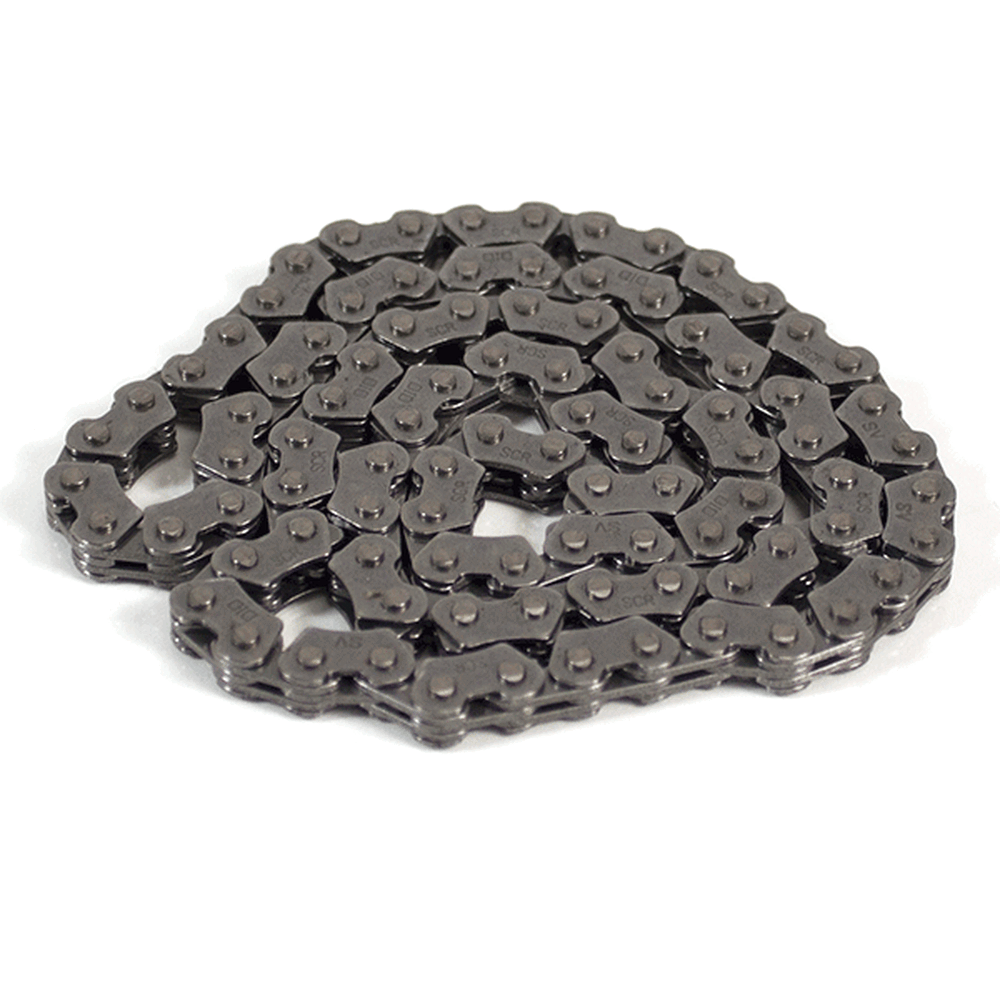

A timing chain synchronizes the rotation of the crankshaft and camshaft(s) ensuring proper timing and allows the engine's valves to open and close during each cylinder's firing. The chain is located inside of the engine and needs to be lubricated by the oil in the engine, making oil maintenance important as well.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Michigan 125 EFI [ZS125-79-E4] | View parts diagram |
Michigan 125 [ZS125-79] | View parts diagram | |
ZSX-F 125 [ZS125-48E] | View parts diagram | |
ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
ZSX-R 125 [ZS125-48F] | View parts diagram | |
Romet | Z-One S 125 [ZONES125] | |
Sinnis | Akuma [AKUMA] | |
Hoodlum 125 [ZS125-79H] | ||
RSX 125 [ZS125-80] | ||
Terrain 125 [ZS125-86] | ||
UM | Commando Classic 125 [UM125-CL] | View parts diagram |
