CMCHN043

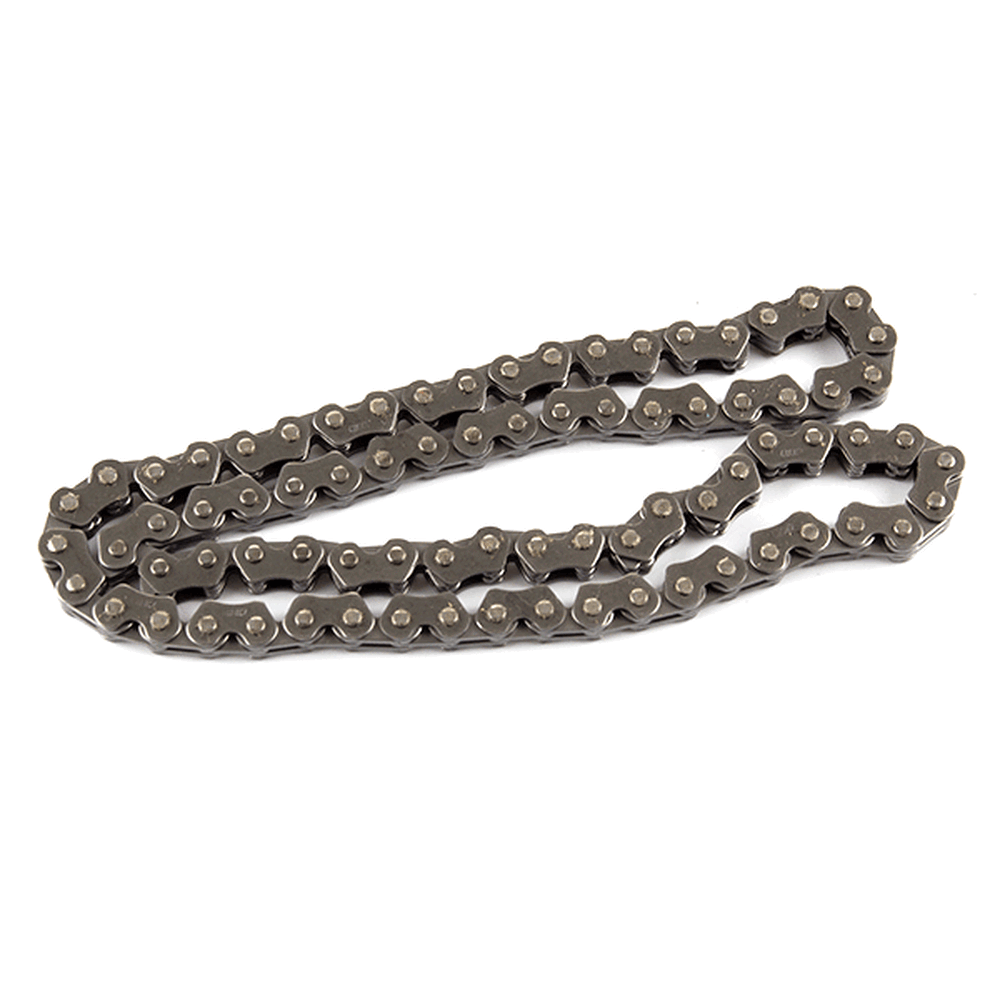

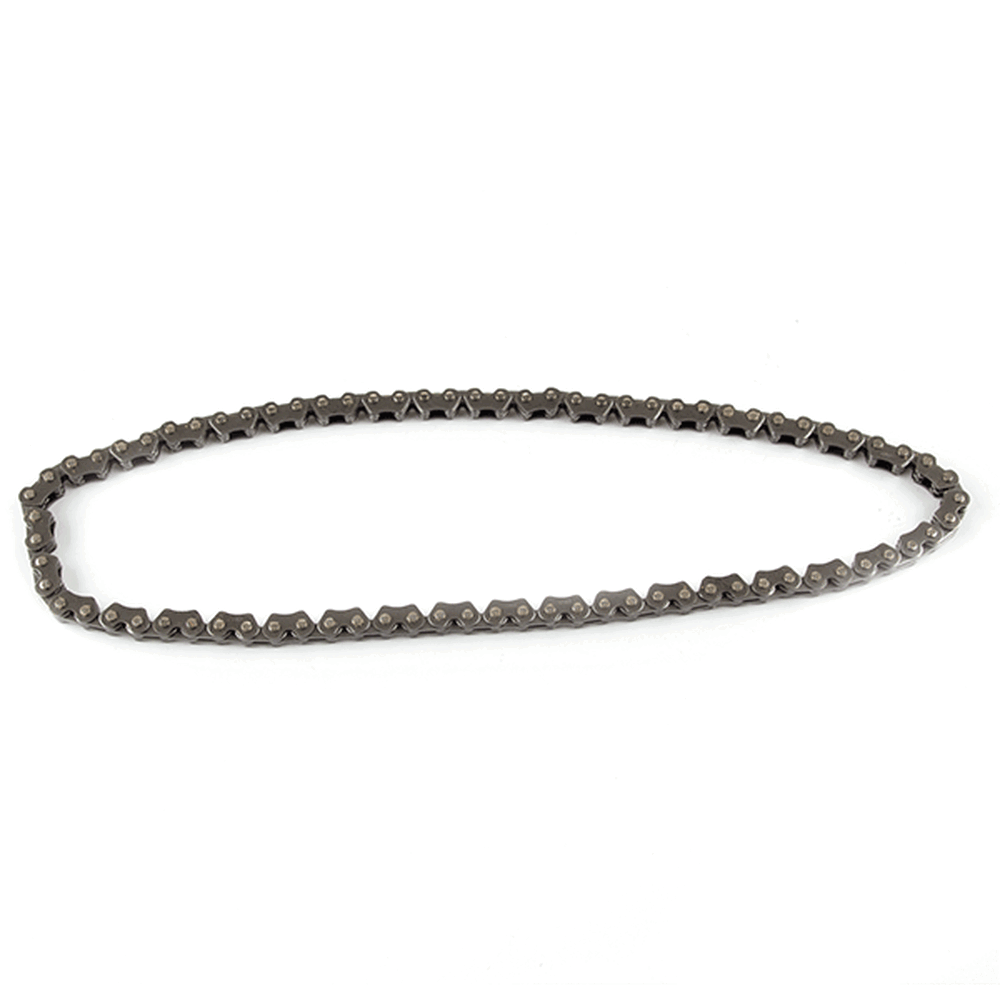

A timing chain synchronizes the rotation of the crankshaft and camshaft(s) ensuring proper timing and allows the engine's valves to open and close during each cylinder's firing. The chain is located inside of the engine and needs to be lubricated by the oil in the engine, making oil maintenance important as well.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram |
Diablo 50 [LJ50QT-9M] | View parts diagram | |
Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
Echo+ 50 [LJ50QT-6L] | View parts diagram | |
Nano 50 [LJ50QT-N] | View parts diagram | |
