CYLH053

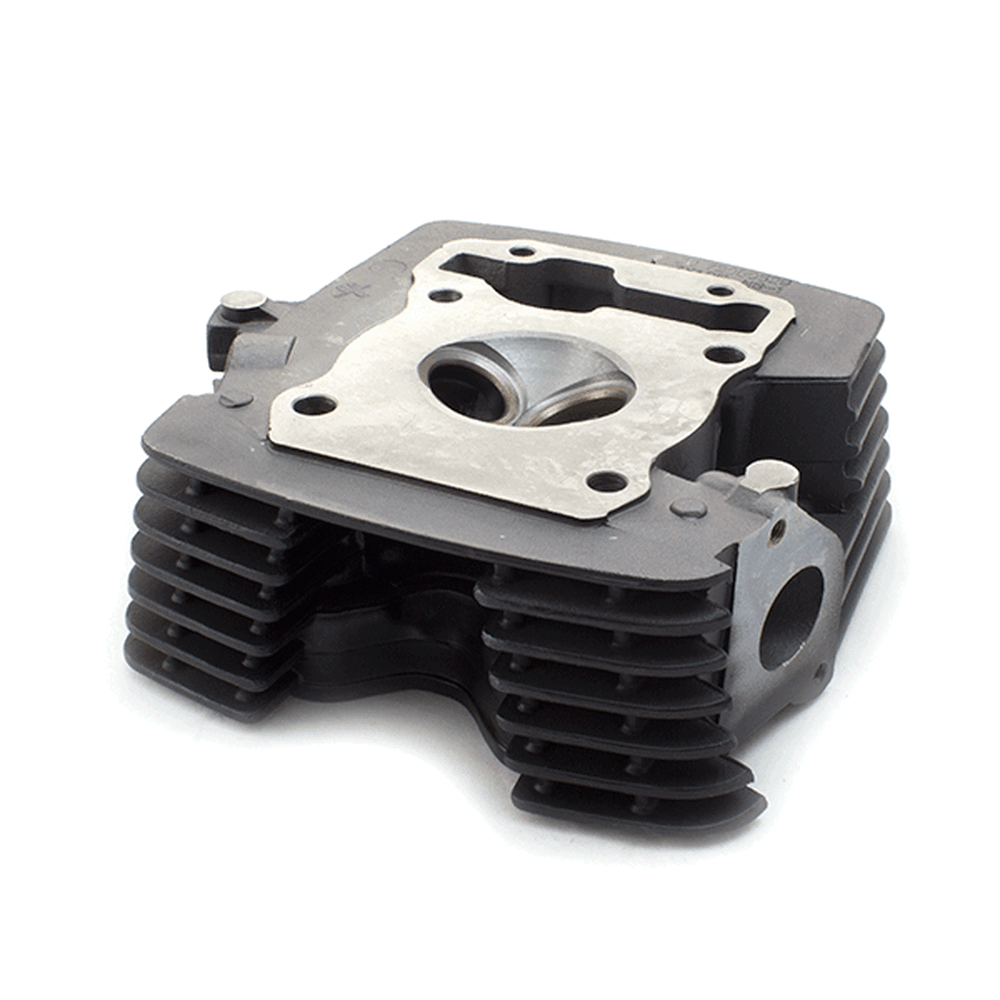

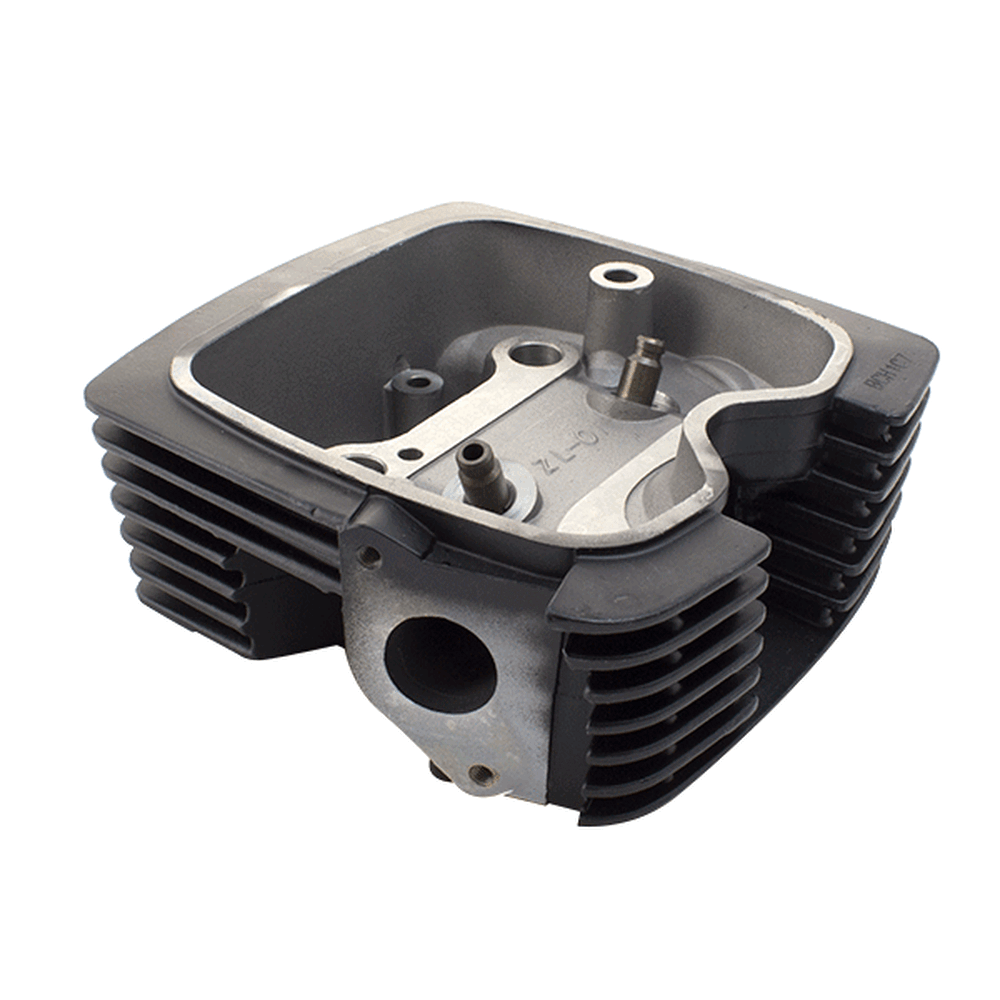

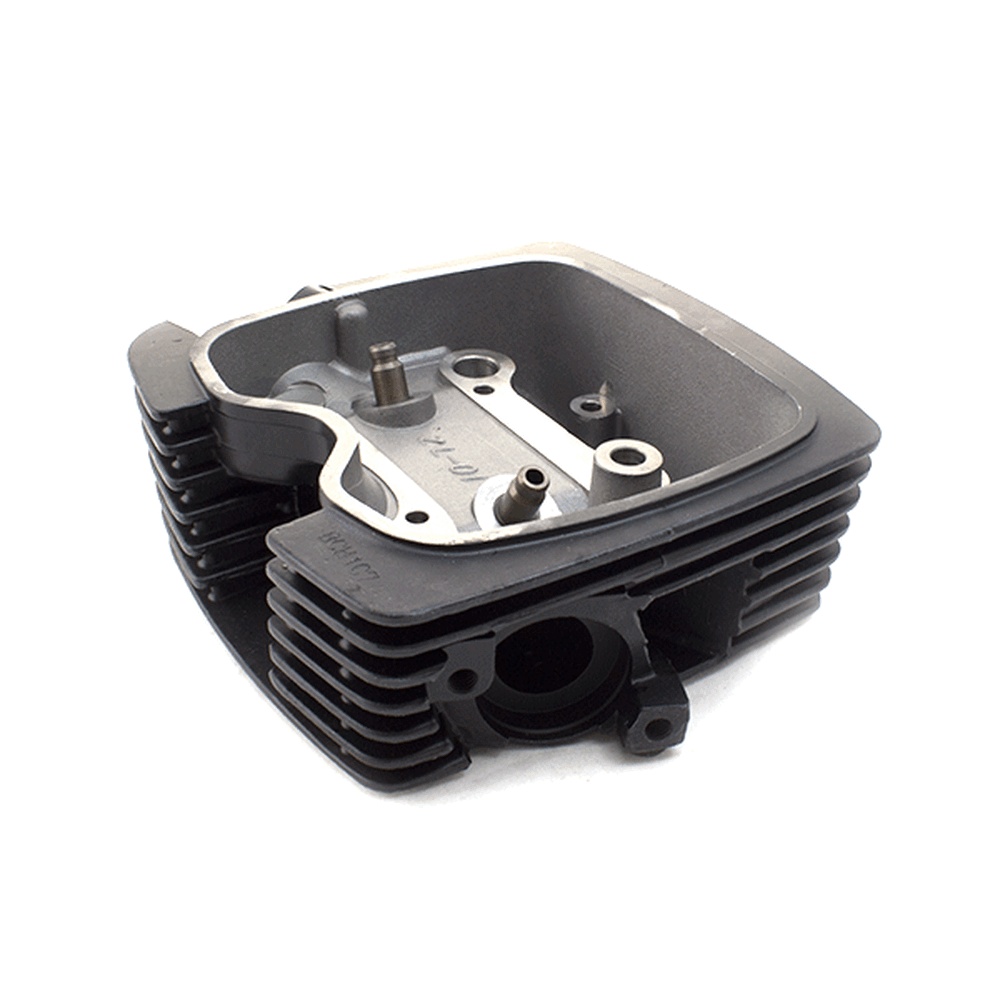

The cylinder head in a motorcycle is a critical engine component that sits atop the cylinder block, housing the intake and exhaust valves, camshaft, and other vital elements. It facilitates the intake of air-fuel mixture and the expulsion of exhaust gases, while also sealing the combustion chamber to ensure efficient engine performance and power generation.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
Tempest 125 [LJ125-9A] | View parts diagram | |
Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
Romet | SCMB 125 [SCMB125] | |
Z-One S 125 [ZONES125] | ||
Z-One T 125 [ZONET125] | ||
Sinnis | Akuma [AKUMA] | |
Hoodlum 125 [ZS125-79H] | ||
RSX 125 [ZS125-80] | ||
Terrain 125 [ZS125-86] | ||
