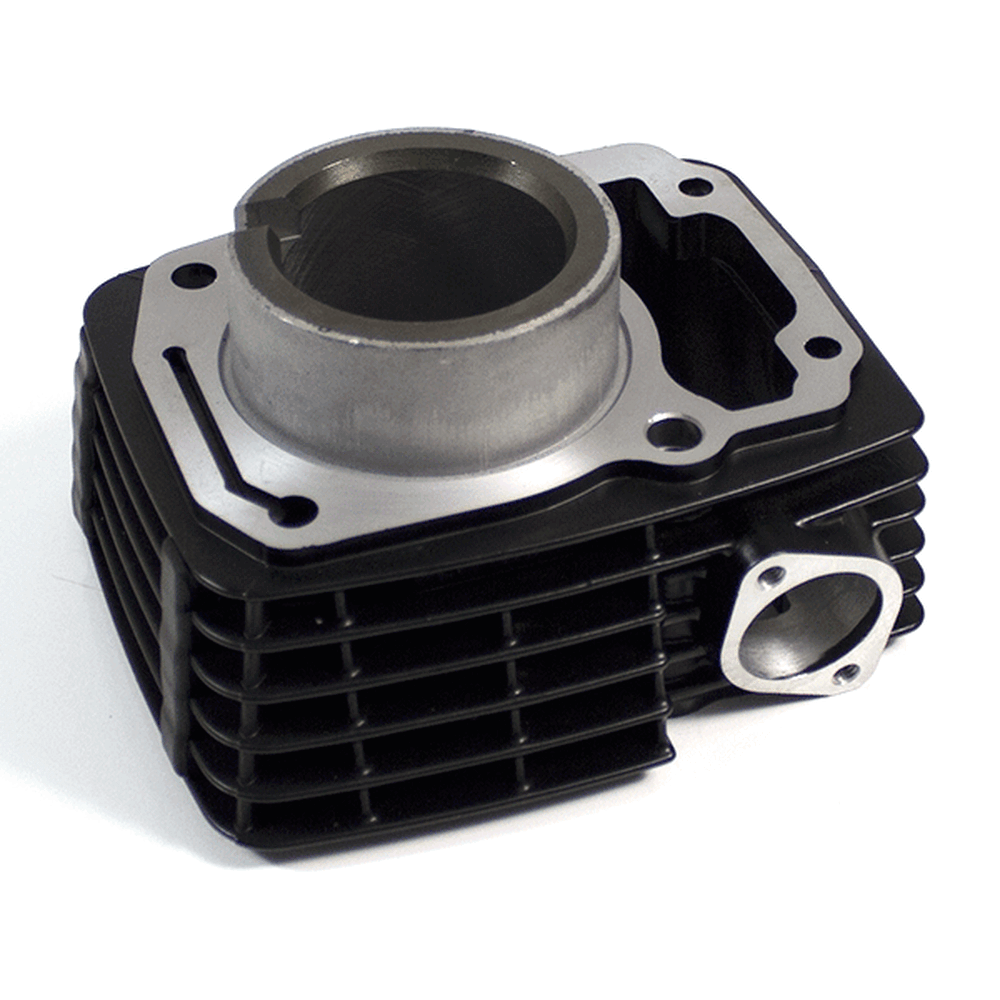

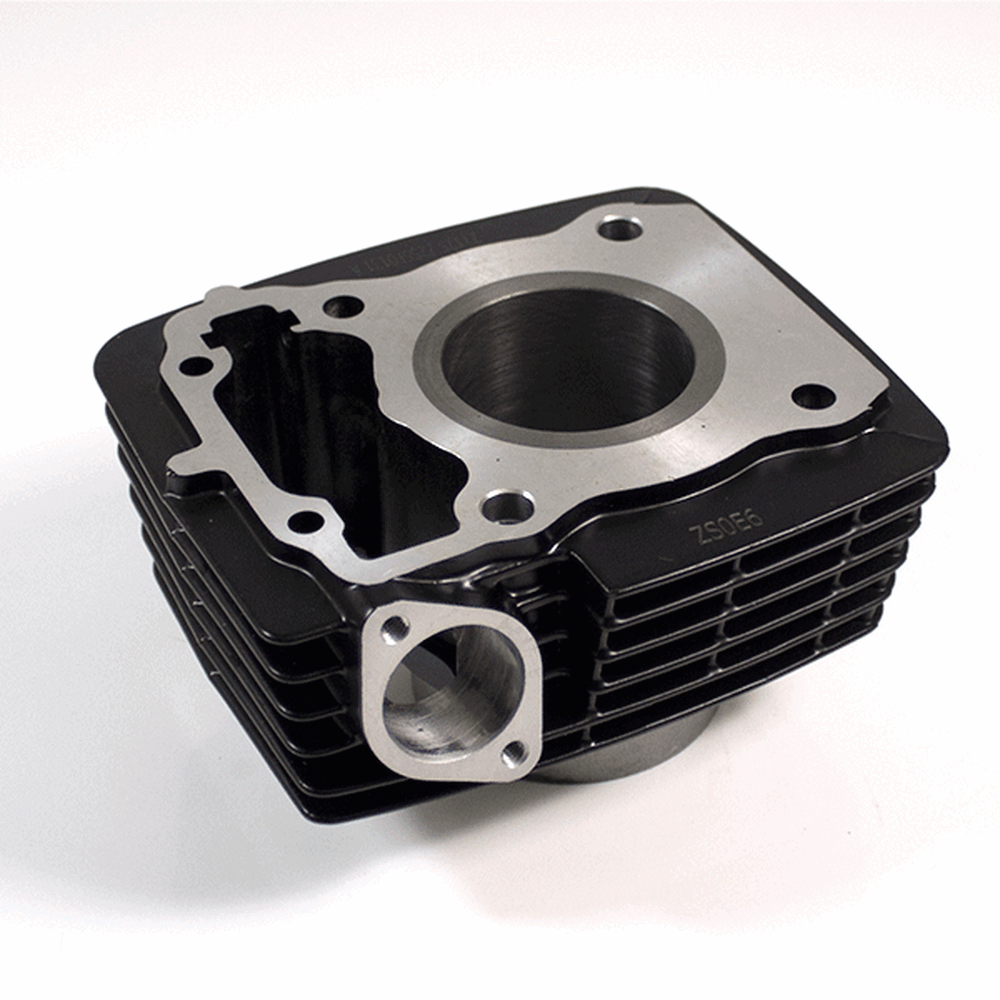

"Another great Cylinder"
The cylinder is the space through which the piston travels, propelled to the energy generated from the combustion of the air/fuel mixture in the combustion chamber. In an air-cooled engine, the walls of the cylinders are exposed to the airflow, to provide the primary method of cooling to the engine.

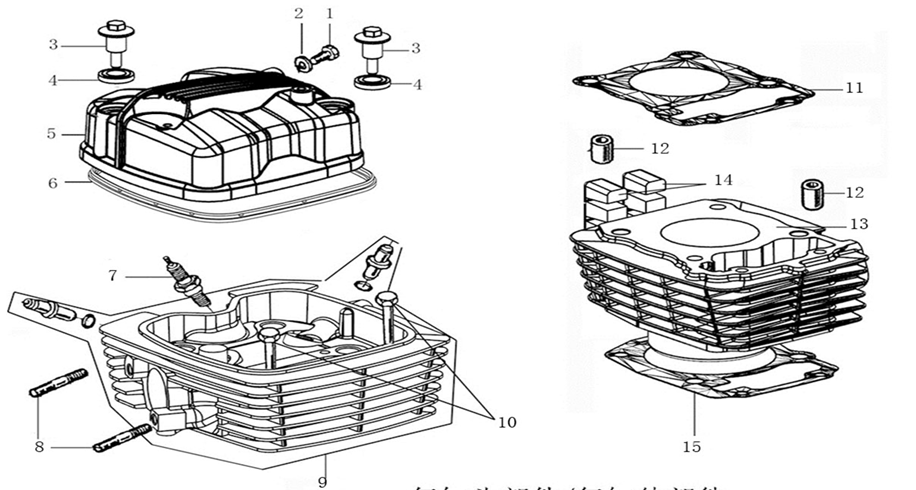

| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
| Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
| Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
| Michigan 125 [ZS125-79] | View parts diagram | |
| Tempest 125 Euro 5 [LJ125-9A-E5] | ||
| Tempest 125 [LJ125-9A] | View parts diagram | |
| Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
| Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
| ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
| ZSX-F 125 [ZS125-48E] | View parts diagram | |
| ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
| ZSX-R 125 [ZS125-48F] | View parts diagram | |
| Romet | SCMB 125 [SCMB125] | |
| Z-One S 125 [ZONES125] | ||
| Z-One T 125 [ZONET125] | ||
| Sinnis | Akuma [AKUMA] | |
| Hoodlum 125 [ZS125-79H] | ||
| Outlaw 125 [SR125-S] | ||
| RSX 125 [ZS125-80] | ||
| Terrain 125 [ZS125-86] | ||
