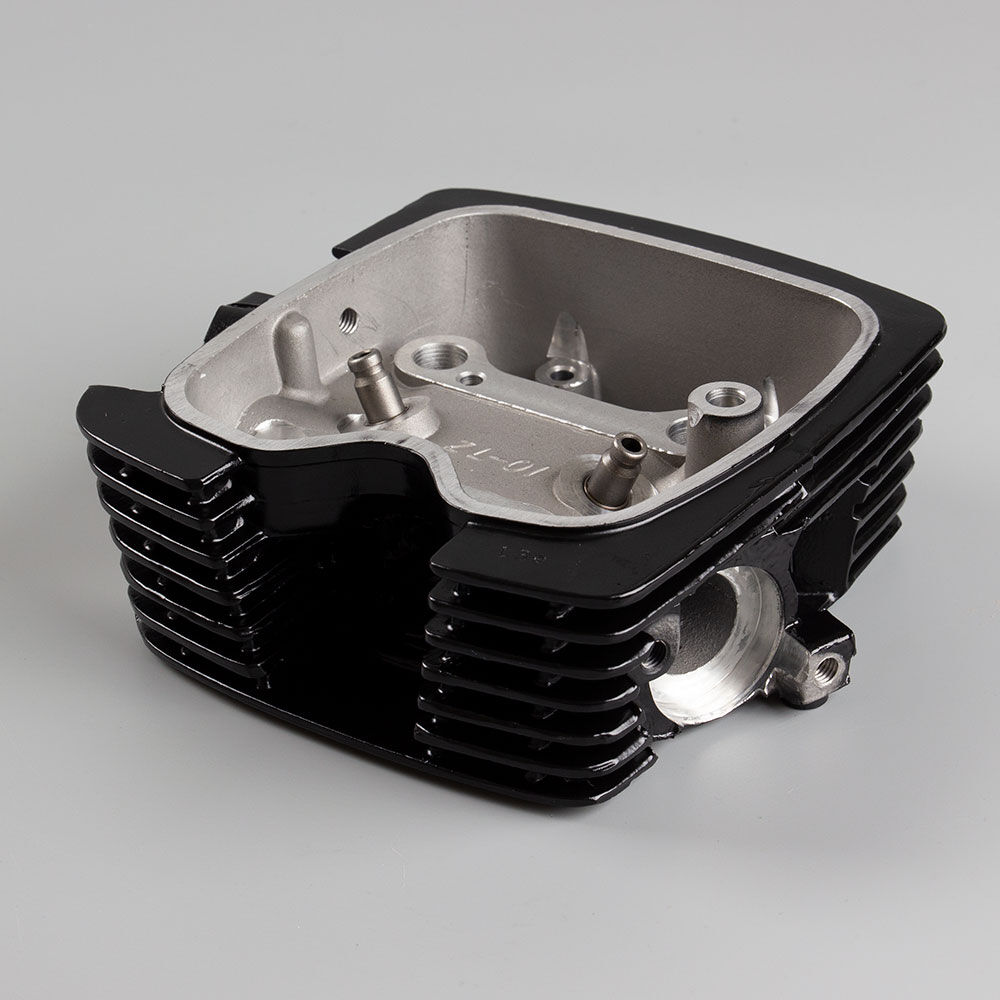

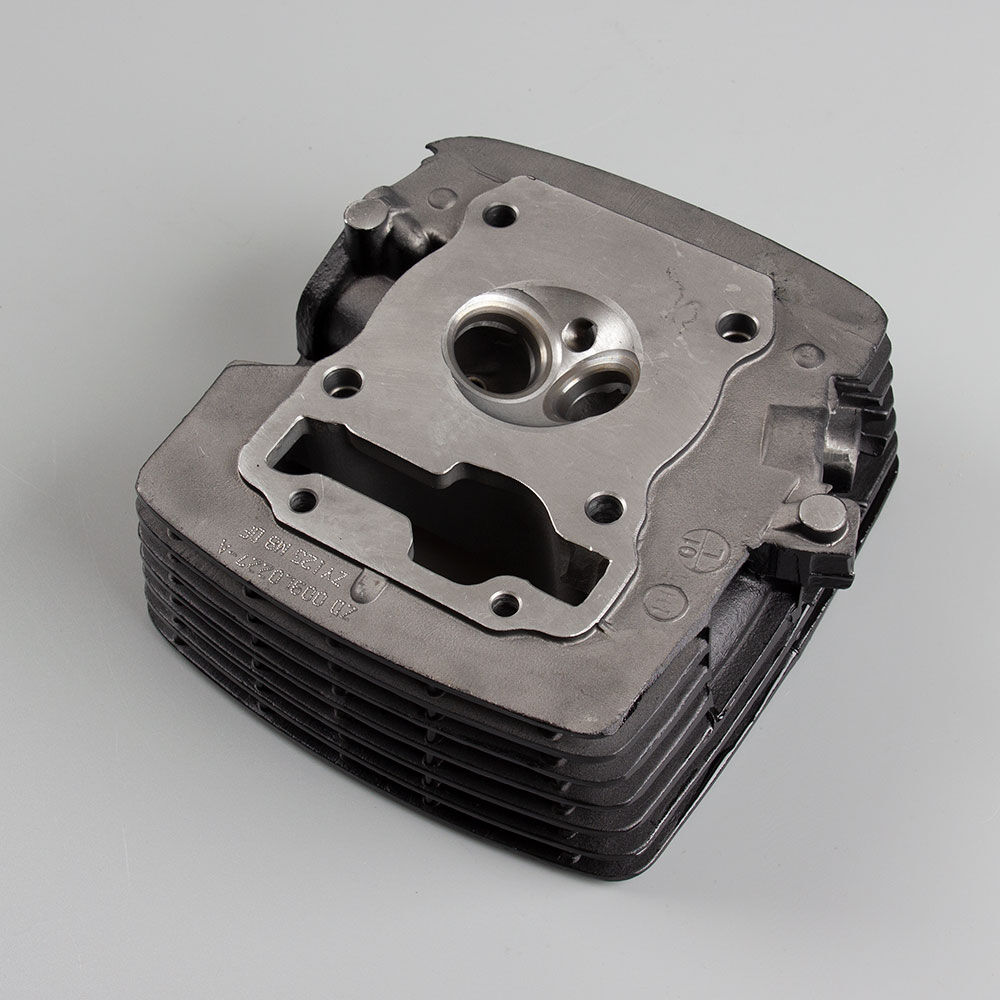

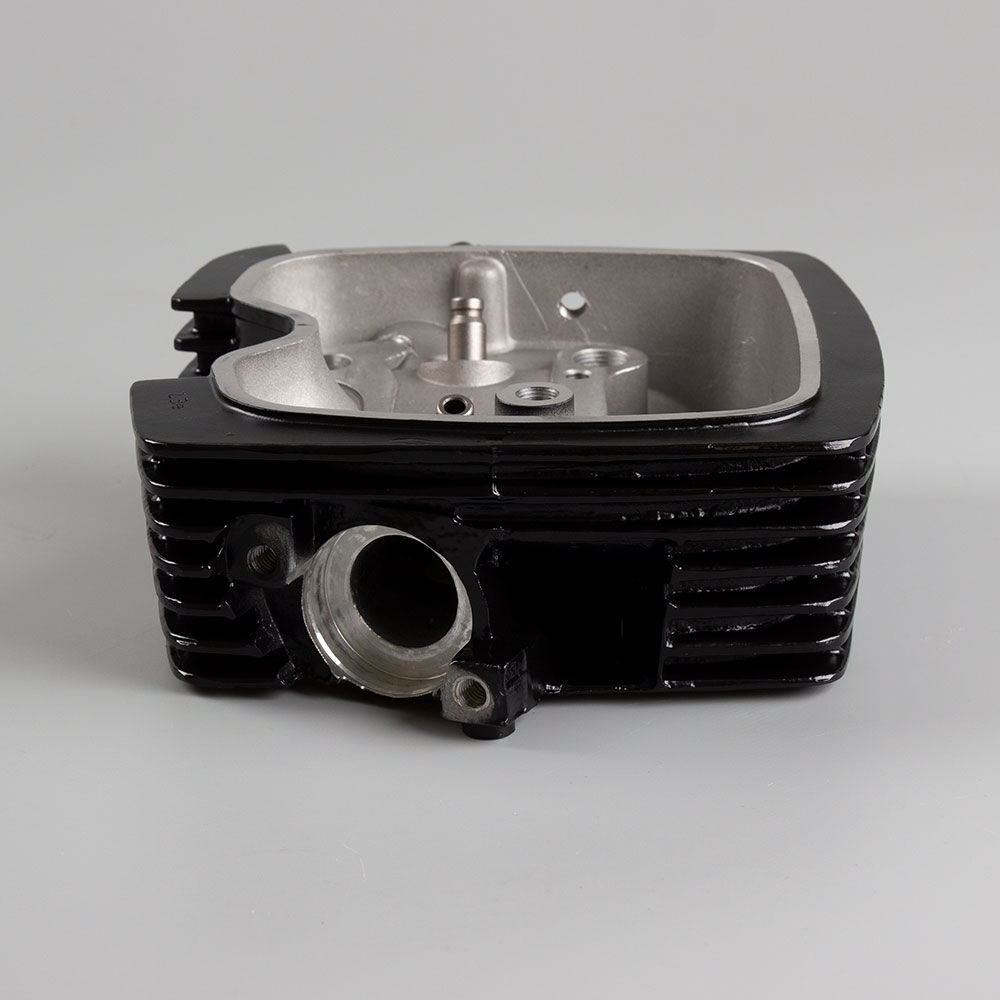

"In the category of Cylinders and Cylinder heads, Cylinder Head"
The cylinder head in a motorcycle is a critical engine component that sits atop the cylinder block, housing the intake and exhaust valves, camshaft, and other vital elements. It facilitates the intake of air-fuel mixture and the expulsion of exhaust gases, while also sealing the combustion chamber to ensure efficient engine performance and power generation.
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Tempest 125 Euro 5 [LJ125-9A-E5] | |

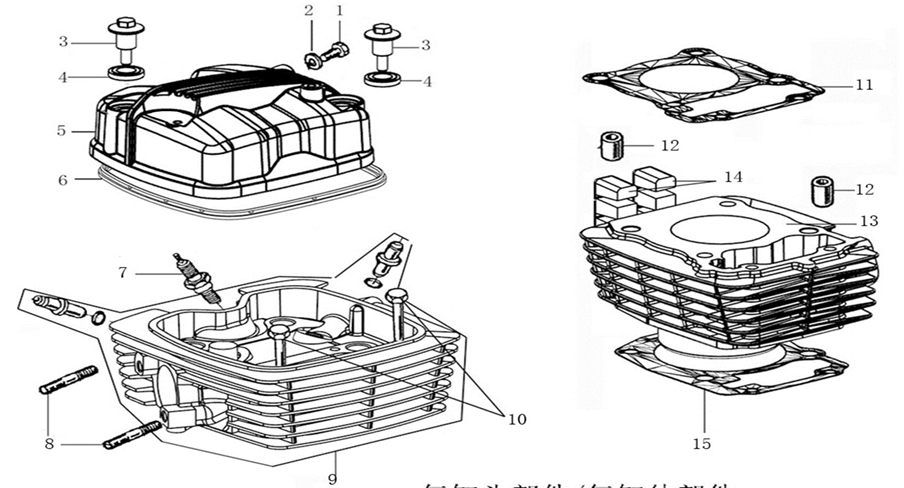

| Tempest 125 [LJ125-9A] | View parts diagram | |
| Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
| Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
| Romet | SCMB 125 [SCMB125] | |
