RKASM009

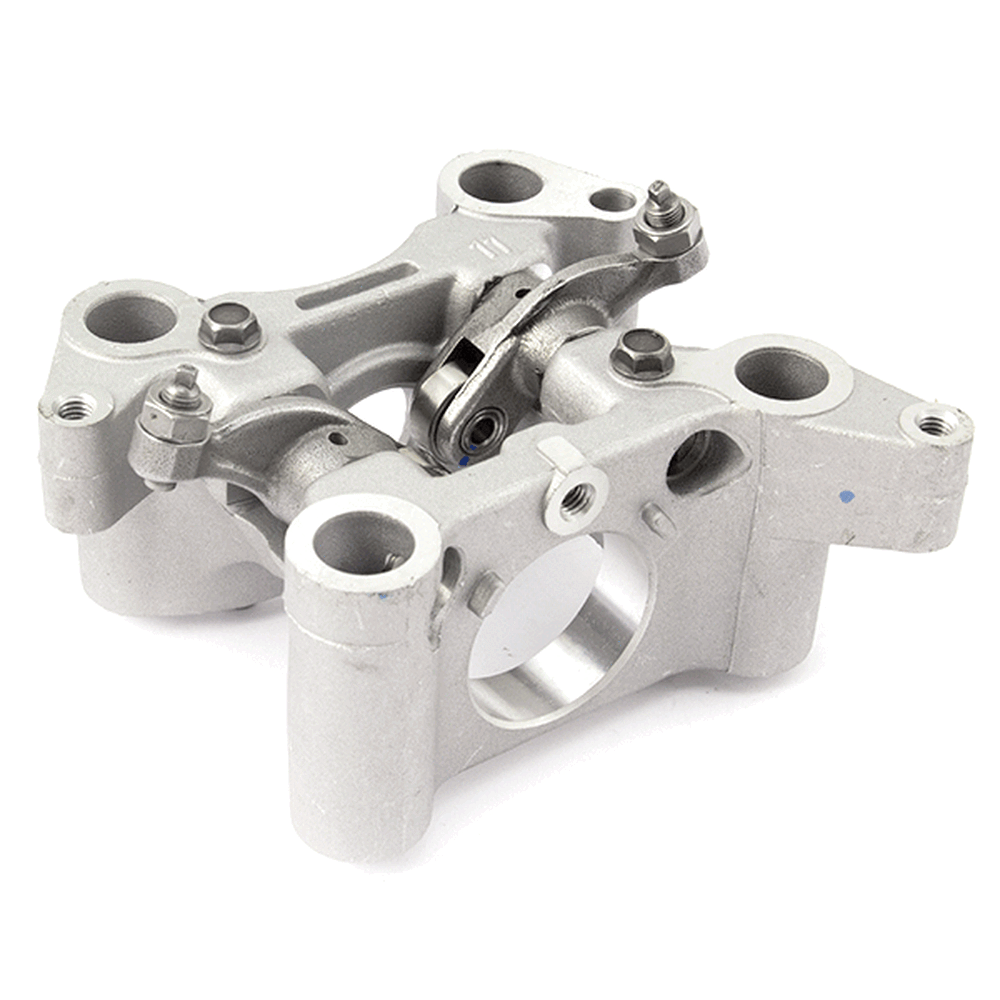

The rocker arm assembly is a crucial component of a motorcycle’s valvetrain, responsible for transferring motion from the camshaft to the engine's valves. It consists of rocker arms mounted on a shaft or supports, which pivot to push the valves open and closed as the camshaft rotates. The assembly ensures precise timing and movement of the valves, which is essential for proper engine operation and performance.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
Romet | Z-One S 125 [ZONES125] | |
Z-One T 125 [ZONET125] | ||
Sinnis | Akuma [AKUMA] | |
Hoodlum 125 [ZS125-79H] | ||
RSX 125 [ZS125-80] | ||
Terrain 125 [ZS125-86] | ||
