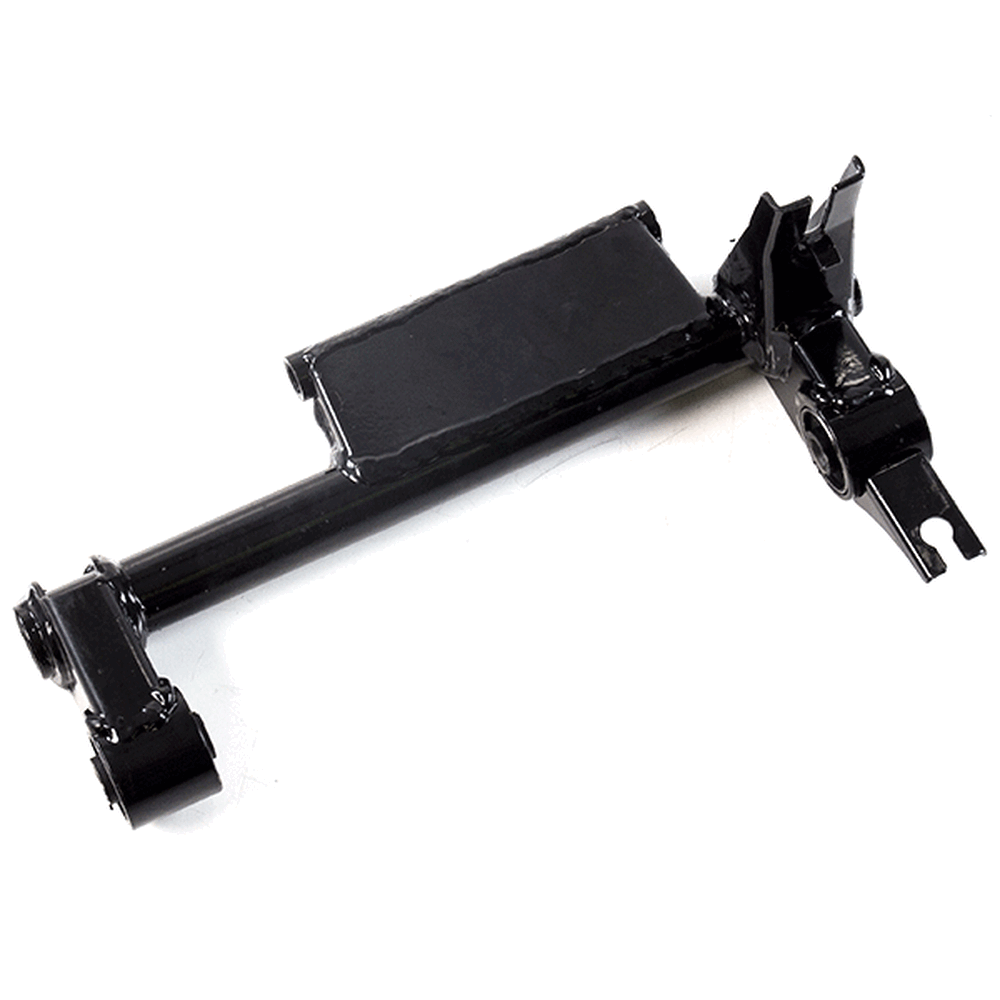

SBFRE009
The engine subframe of a motorcycle is a secondary frame structure that supports and secures the engine within the main motorcycle frame. It is designed to provide additional mounting points and stability for the engine, helping to distribute engine loads and vibrations more effectively. Typically made from metal, such as steel or aluminum, the engine subframe also helps to align the engine correctly with other components like the transmission and suspension.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram |
Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
Diablo 125 [LJ125T-8M] | View parts diagram | |
Riviera 125 [LJ125T-V] | View parts diagram | |
Urban 125 [LJ125T-16] | View parts diagram | |
Longjia | LJ125T-9M | |
Romet | City 125 [CITY125] | |
