SPKS005

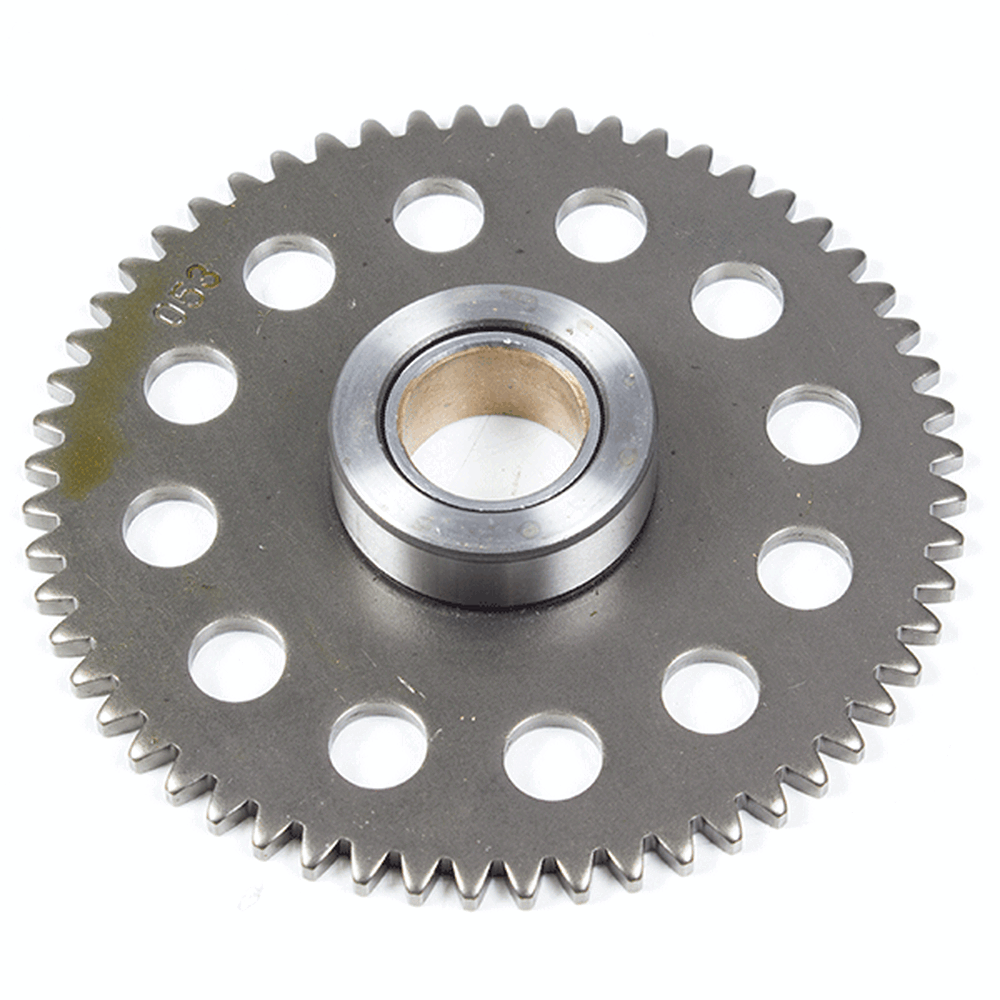

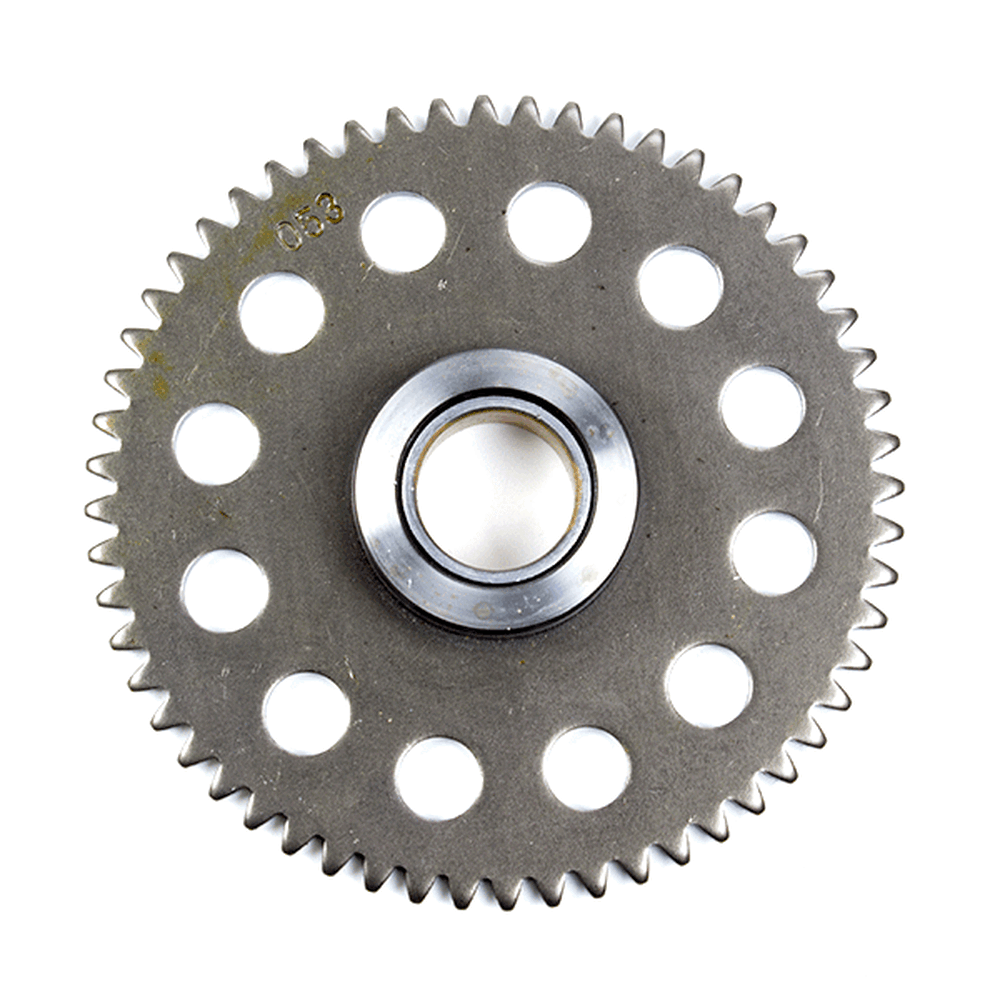

The starter sprocket is a component in a motorcycle's starting system that interacts with the starter motor to initiate engine cranking. Located typically on the engine’s crankshaft or the starter motor shaft, it engages with the starter motor's drive mechanism (often through a starter clutch) to turn the engine over when the starter is activated. Once the engine starts and reaches operational speed, the starter sprocket disengages, allowing the engine to run independently. This component is essential for smooth engine start-up and reliable starting performance.
Manufacturer | Model | Diagram |
---|---|---|
Direct Bikes | 125cc Enduro S E3 [DB125GY-2B] | |
Lexmoto | Adrenaline 125 EFI [XFLM125GY-2B-E4] | View parts diagram |
Adrenaline 125 [XFLM125GY-2B] | View parts diagram | |
Pulse | Adrenaline 125 [XF125GY-2B] | View parts diagram |
Qingqi | Sport | |
SFM | ZX125 | |
ZZ125 | ||
Sinnis | Apache 125 | |
Apache SMR [QM125GY-G] | ||
Blade 125 [QM125GY(OFF ROAD)] | ||
Stealth 125 [QM125-2D] | ||
Trackstar 125 [QM125GY-2D] | ||
Superbyke | RMR 125 [RMR125] | |
RSR125 | ||
