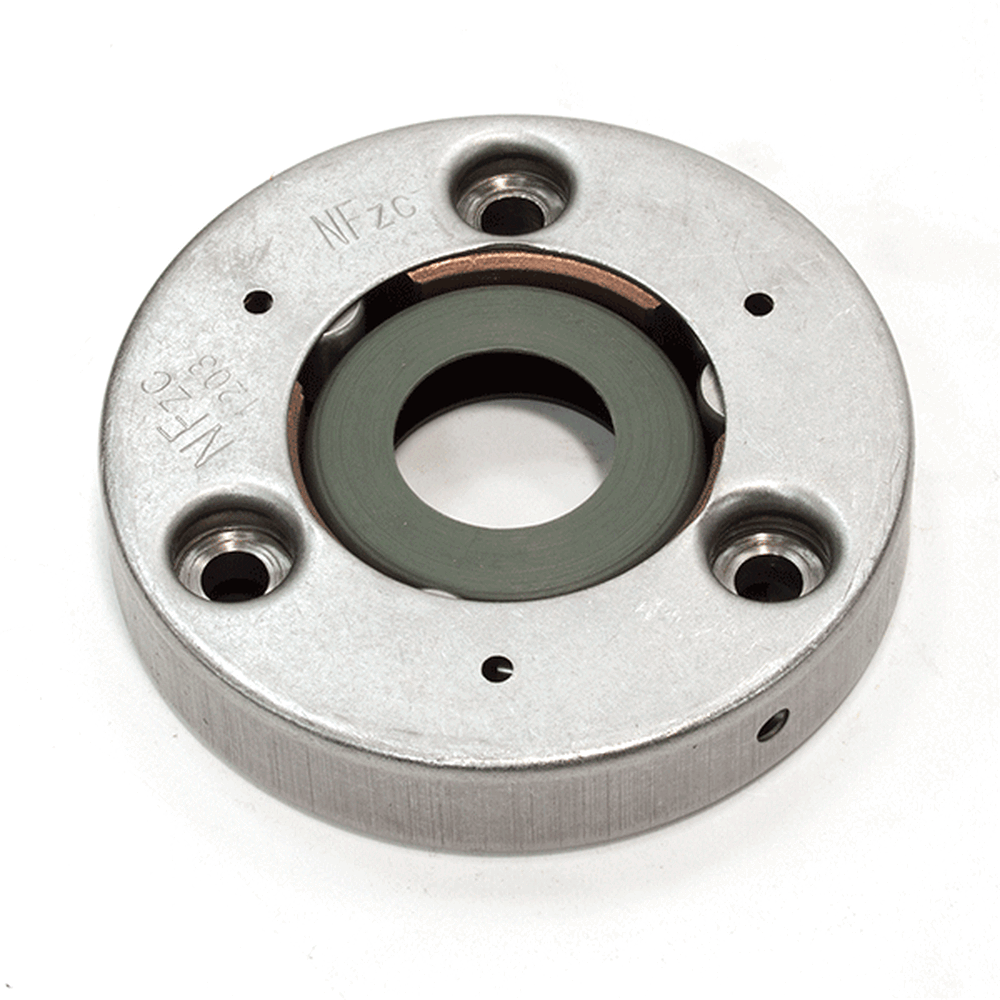

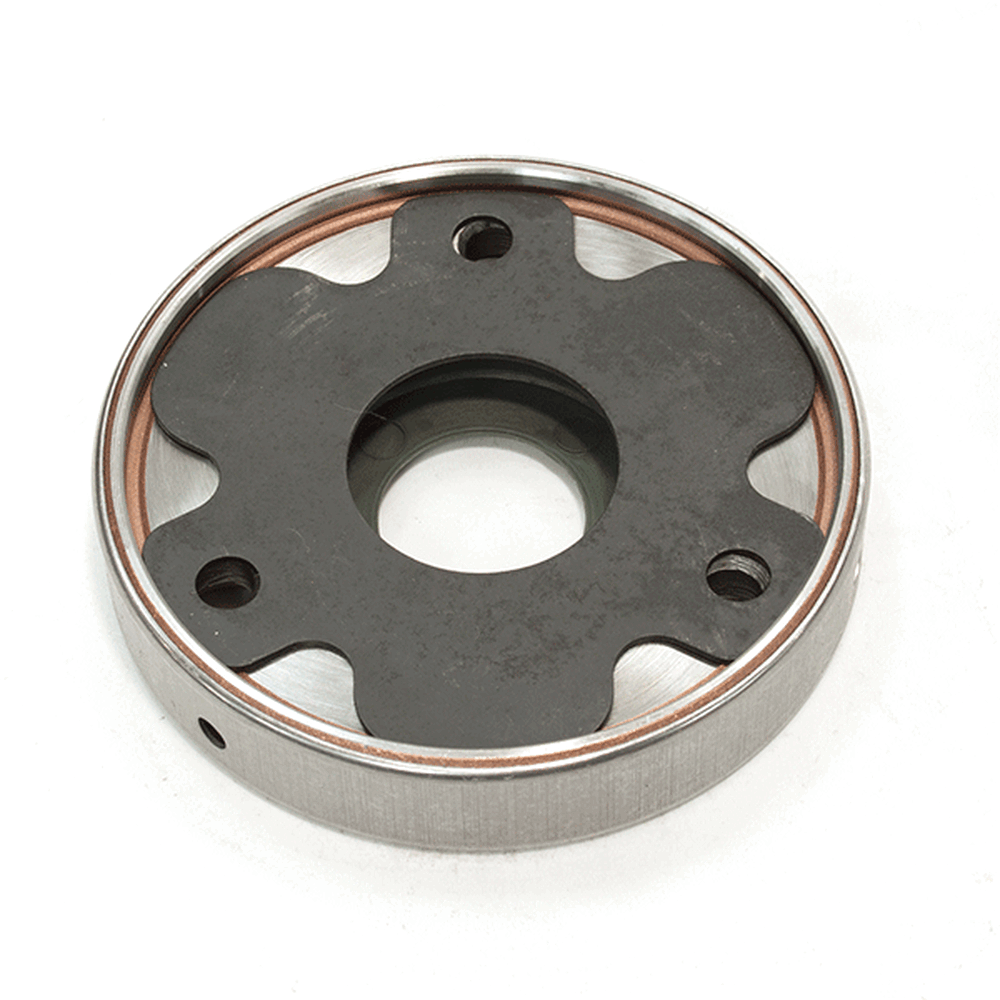

STC013

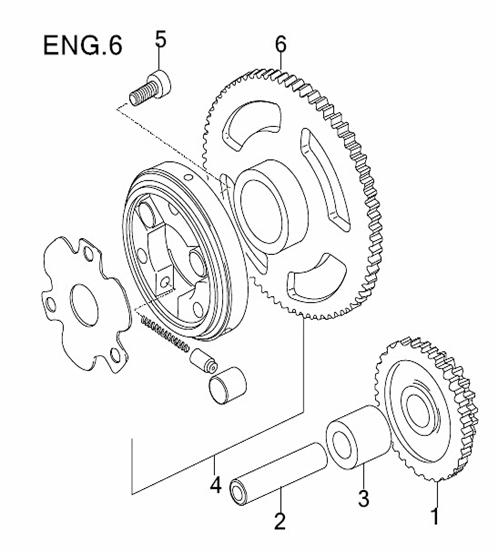

The starter clutch, also known as the one-way clutch or starter drive, is a component in a motorcycle's starting system that allows the starter motor to crank the engine and then disengages once the engine starts. It consists of a set of gears or rollers that engage with the engine's flywheel or crankshaft to turn the engine over. Once the engine starts and reaches a certain speed, the starter clutch disengages to prevent the starter motor from turning with the engine. This component ensures smooth engine start-up and prevents potential damage to the starter motor.
Manufacturer | Model | Diagram |
---|---|---|
Dafier | DFE125-8A | |
Direct Bikes | 125cc Enduro S E3 [DB125GY-2B] | |
125cc Hurricane E3 [DB125R] | ||
Lexmoto | Adrenaline 125 EFI [XFLM125GY-2B-E4] | View parts diagram |
Adrenaline 125 [XFLM125GY-2B] | View parts diagram | |
Adrenaline Exile 125 [XF125GY-B-E4] | ||
Lowride 125 [DFE125L] | ||
Street 125 [DFE125-8A] | ||
Valiant 125 EFI [XF125R-E4] | View parts diagram | |
Valiant 125 [XF125R] | View parts diagram | |
Mash | Seventy Five 125 [SEVENTY FIVE 125] | |
Mutt | FAT SABBATH [FATSABBATH] | |
Pulse | Adrenaline 125 [XF125GY-2B] | View parts diagram |
Qingqi | Sport | |
SFM | Roadster [SFM125-8A] | |
ZX125 | ||
ZZ125 | ||
Sinnis | Apache 125 | |
Apache SMR [QM125GY-G] | ||
Blade 125 [QM125GY(OFF ROAD)] | ||
Bomber 125 [QM125-2X-EB] | ||
Cafe 125 [QM125-2X] | ||
Max II 125cc [QM125-2V] | ||
Retrostar 125 [QM125-2X-R] | ||
Scrambler [QM125-2X-E] | ||
Stealth 125 [QM125-2D] | ||
Trackstar 125 [QM125GY-2D] | ||
Vista [QM125-2C] | ||
Superbyke | RMR 125 [RMR125] | |
RSR125 | ||
Suzuki | EN125-2 | |
EN125-2A | ||
GSX125 | ||
UM | Scrambler Classic 125 [UM125-SC] | View parts diagram |
Zennco | Bullet | |
