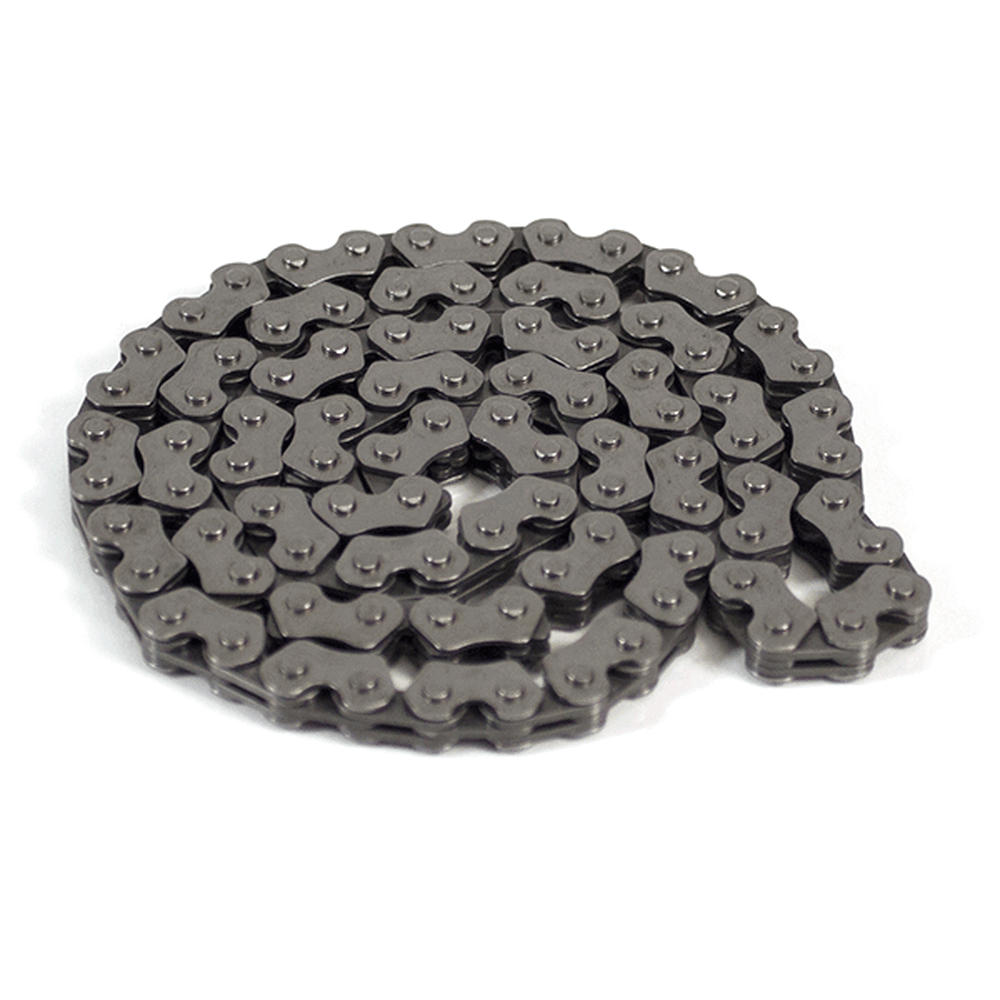

CMCHN028
A timing chain synchronizes the rotation of the crankshaft and camshaft(s) ensuring proper timing and allows the engine's valves to open and close during each cylinder's firing. The chain is located inside of the engine and needs to be lubricated by the oil in the engine, making oil maintenance important as well.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram |
Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
Diablo 125 [LJ125T-8M] | View parts diagram | |
Riviera 125 [LJ125T-V] | View parts diagram | |
SRT 125 Euro 5 [LJ125T-X-E5] | View parts diagram | |
Urban 125 [LJ125T-16] | View parts diagram | |
Longjia | LJ125T-9M | |
LJ125T-X | ||
Romet | City 125 [CITY125] | |
UM | Commando Classic 125 [UM125-CL] | View parts diagram |
