RKAS036

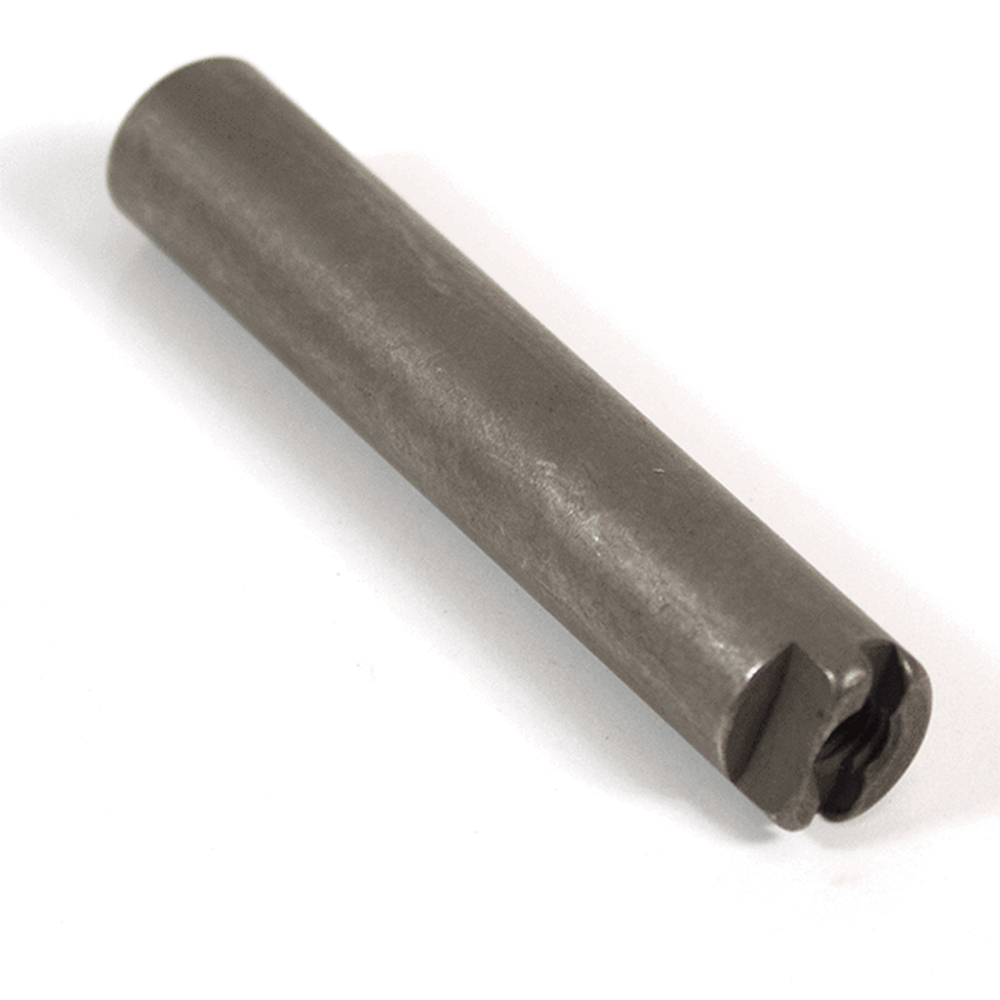

The rocker arm shaft is a component that supports and pivots the rocker arms within the motorcycle’s engine. Mounted securely to the cylinder head or engine block, it serves as the central axis around which the rocker arms rotate. As the camshaft drives the rocker arms, the shaft ensures their smooth, precise movement, allowing them to effectively open and close the engine’s valves.
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram |
Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
Diablo 125 [LJ125T-8M] | View parts diagram | |
Riviera 125 [LJ125T-V] | View parts diagram | |
SRT 125 Euro 5 [LJ125T-X-E5] | View parts diagram | |
Urban 125 [LJ125T-16] | View parts diagram | |
Longjia | LJ125T-9M | |
LJ125T-X | ||
Romet | City 125 [CITY125] | |
UM | DSR EX [UM125-DEX] | View parts diagram |
