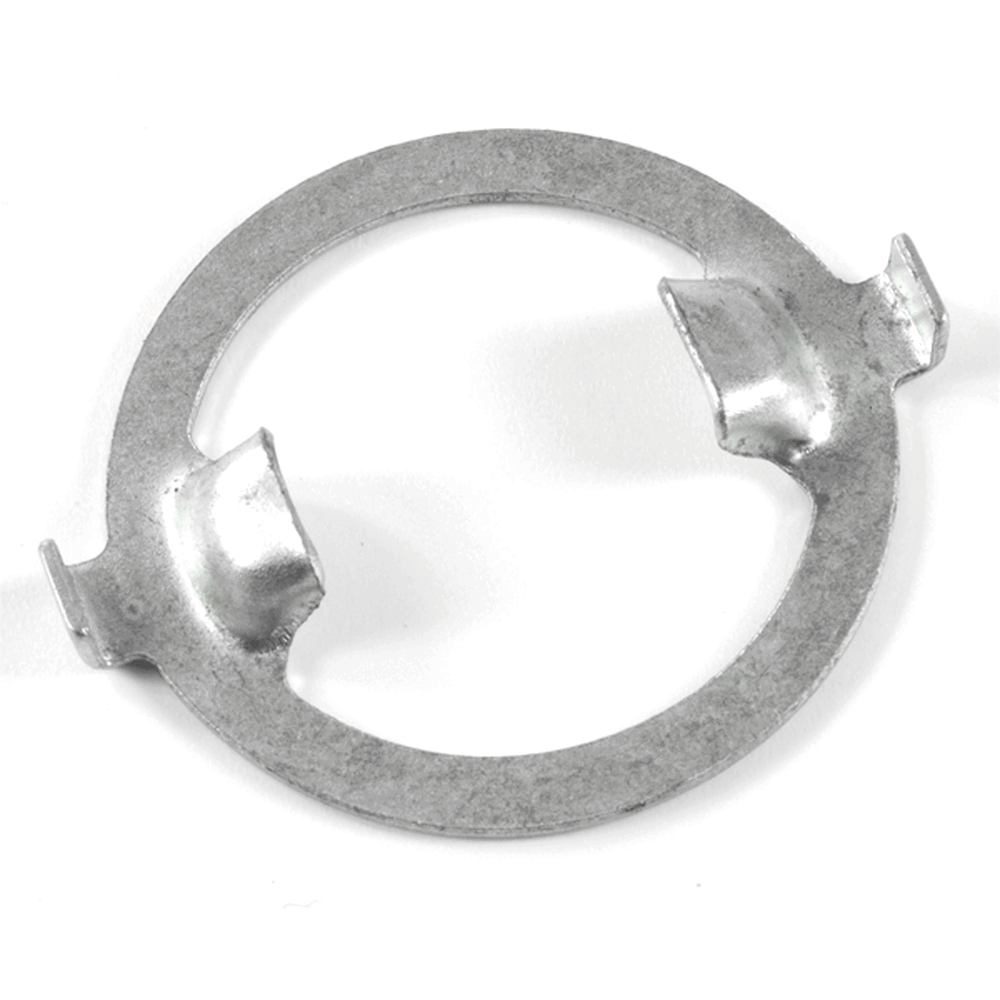

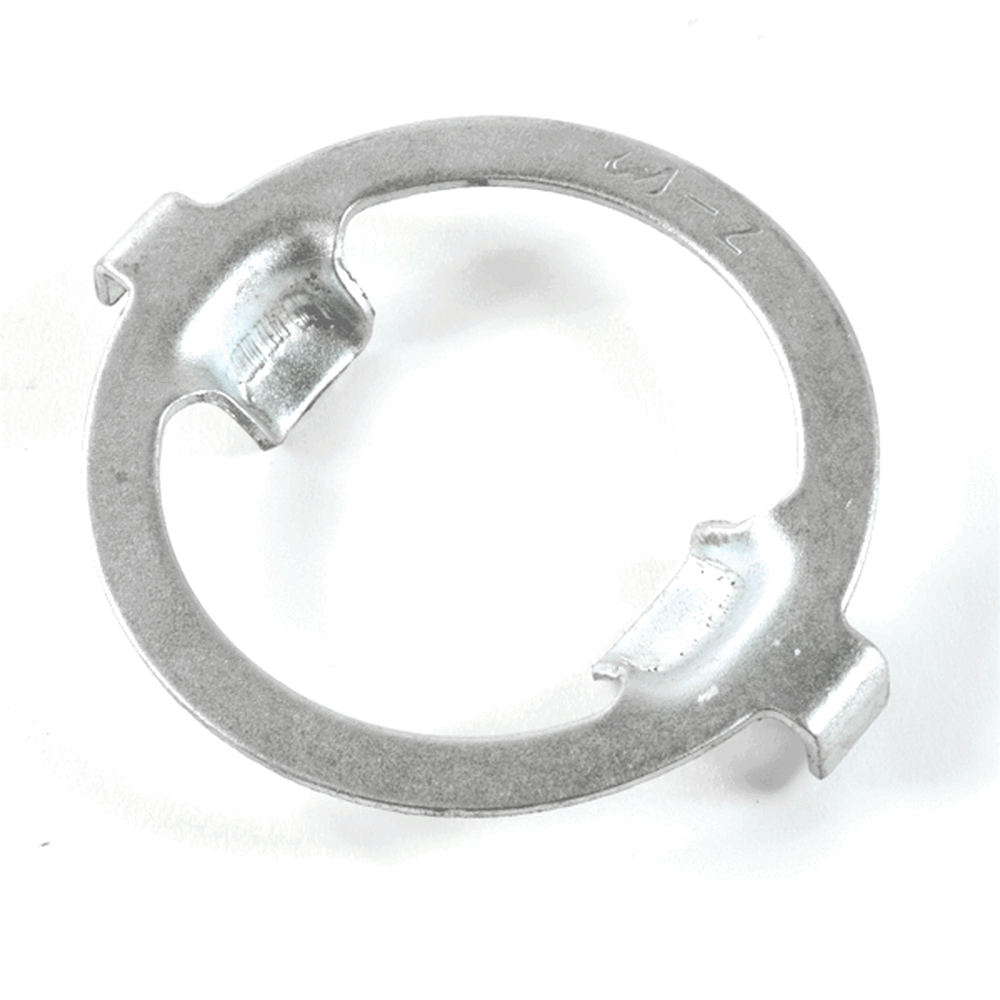

SPD074
The speedo drive, also known as the speedometer drive, is a mechanical or electronic component that transmits rotational motion from the motorcycle's front wheel or transmission to the speedometer. It typically consists of a gear or sensor that is connected to the wheel hub or the transmission output shaft. As the wheel turns, the speedo drive converts this motion into a signal or movement that is sent to the speedometer, allowing it to display the motorcycle’s current speed. Proper functioning of the speedo drive is crucial for accurate speed readings and overall reliable performance of the motorcycle’s instrumentation.
Manufacturer | Model | Diagram |
---|---|---|
Baotian | Hawk 125 [BT125T-7] | |
Dayang | Venture 200 [DY200] | |
Direct Bikes | 125cc Cruiser | |
125cc Cruiser E3 [DB125T-7] | ||
125cc Cruiser E3 [DB125T-7H] | ||
DB125T-9 | ||
Jinlun | 125cc Cruiser Scooter [JL125T-12A] | |

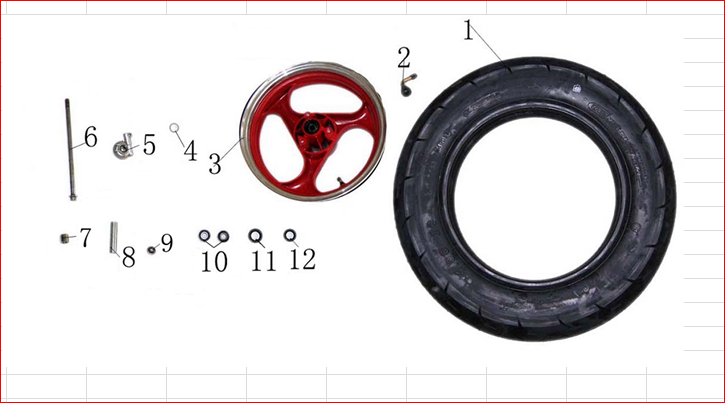

Lexmoto | FMS 125 [ZN125T-7H] | View parts diagram |
Gladiator 125 | View parts diagram | |
Titan 125 [ZN125T-8F] | View parts diagram | |
Lifan | City X 125 [LF125-J] | |
Earth Dragon 125 [LF125GY-3] | ||
LF125T-6 | ||
Pulse | Strider 125 [SB125T-23A] | |
Vijo 125 [HT125T-9] | ||
Romet | RXL 125 [RXL125] | |
Sanben | Gladiator 125 (06/07) [SB125T-23] | |
SB125T-23B | ||
Sinnis | Harrier EFI [ZN125T-22E] | |
Shuttle 125 EFI [ZN125T-7S] | ||
Shuttle 125 [ZN125T-7H(SINNIS)] | ||
Skygo | Commander | |
Titan | ||
Sukida | Alien 125 [SK125T-14] | |
Commander [SK125T-18] | ||
Superbyke | SMAX 125 | |
Wangye | WY125T-23A | |
WY125T-23B | ||
Yiben | Gladiator 125 [YB125T-15(B)] | |
Strider 125 [YB125T-15] | ||
Zing Bikes | Mirage 125cc | |
